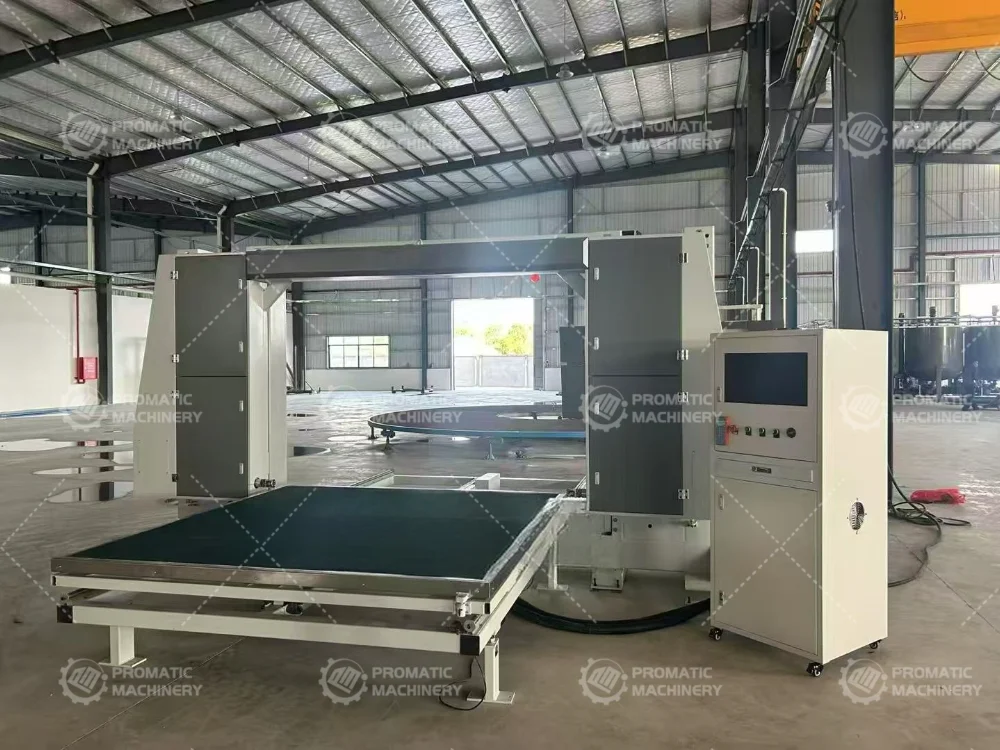

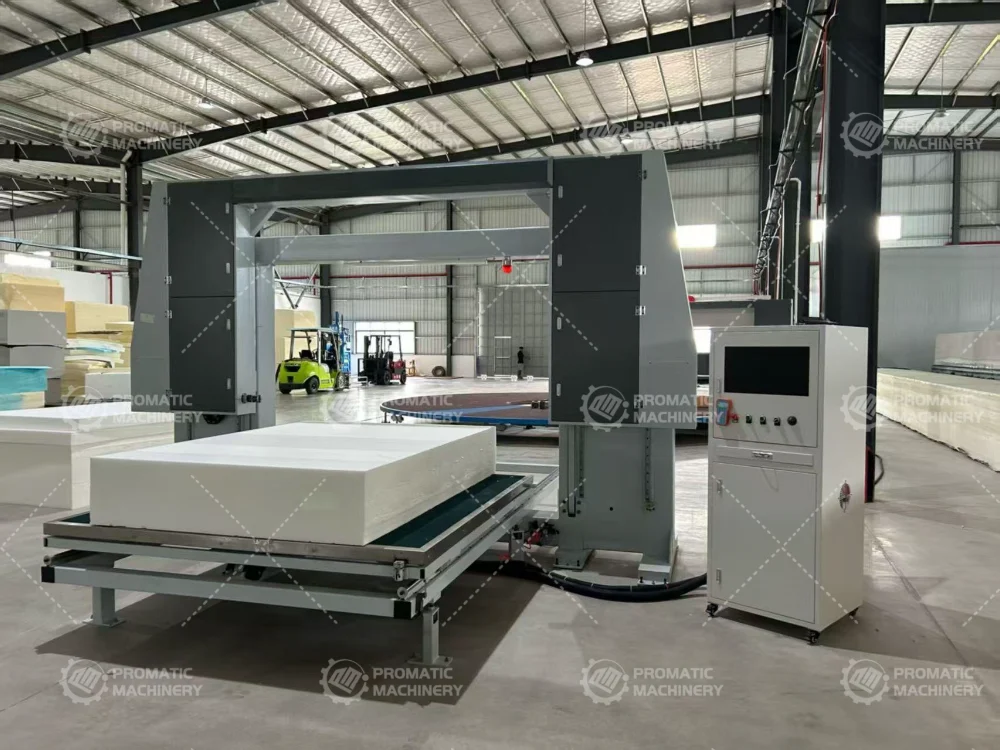

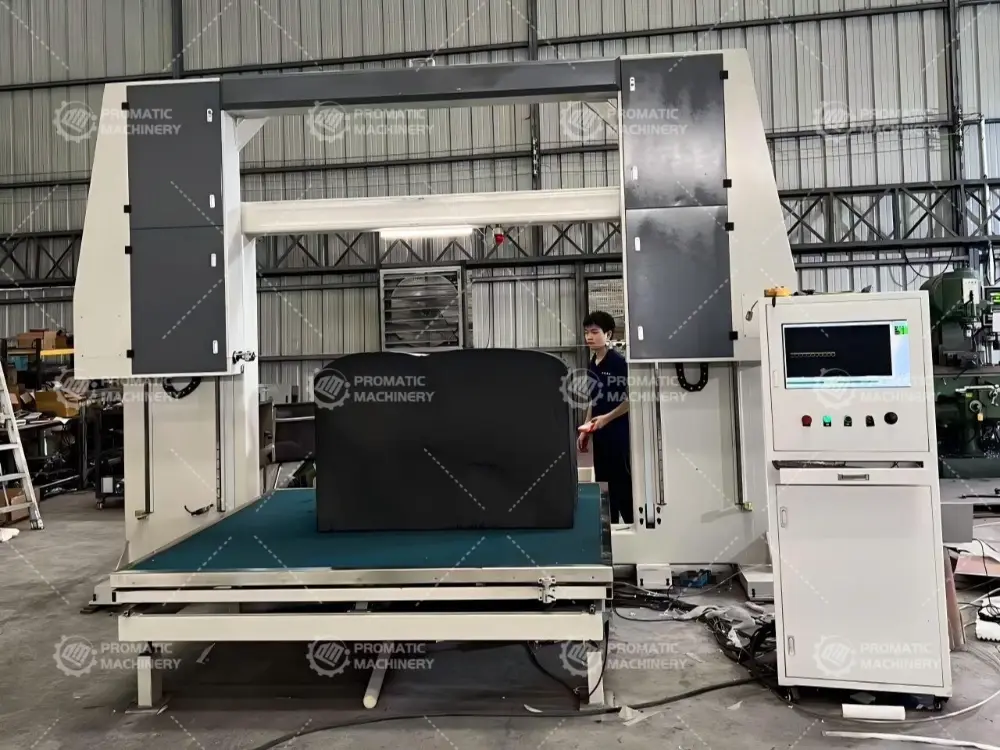

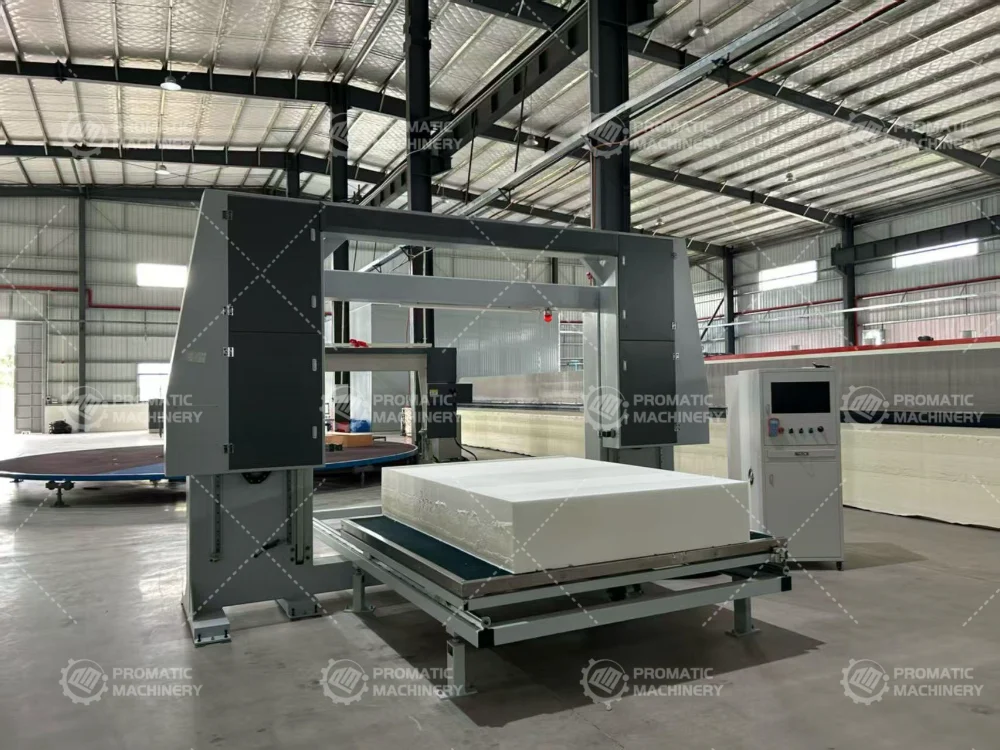

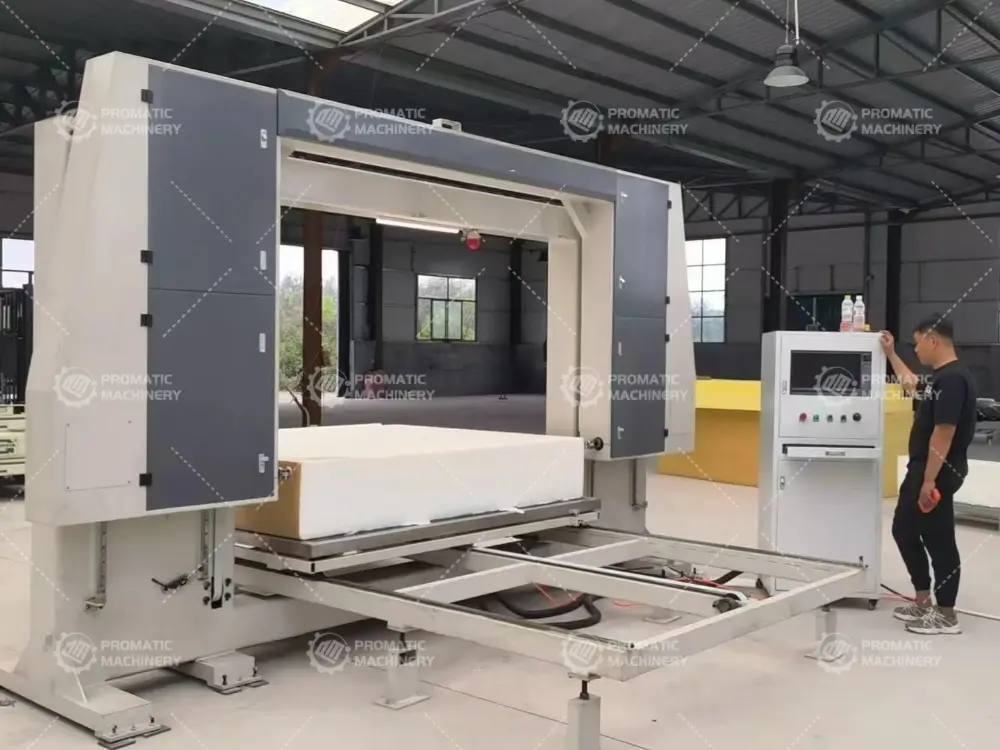

The PM-CNC1 CNC Horizontal Circular Horizontal Cutting Machine integrates modern control with a sturdy frame to deliver long‑term reliability in production. Operators gain clear feedback and direct access to adjustments, built around precision cutting and trimming, PU foam processing compatibility. The drive system is sized at approximately 2 kW for stable motion control. The footprint remains manageable at roughly 6000 × 4500 × 3000 mm. This practical design helps maintain throughput without increasing complexity.
| Specification | Details |
|---|---|
| Machine Weight | 3 T |
| Total Machine Power | 5.2 kW |
| Machine Dimensions | 6000*4500*3000 mm |
| Maximum Cutting Size | 3000*2000*1100 mm |
| Tool Size | 12485*3.5*0.6 mm |
| Machining Line Speed | 0-40 m/min |
| Machining Accuracy | ±1 mm |
| Minimum Cutting Radius | 5 mm |
| Power Supply | 220V/380V/415V, 50Hz/60Hz |
| CNC Type | Industrial Controller |
| Braided Bearing | X, Y, W1, W2 |
| Manual Turntable/Conveyor Belt | Optional |
| Operating System | Windows XP or above |
| Twist Knife to Zero | Installed |
| Self-Diagnostic State | Installed |
| Knife Break Alarm | Installed |
