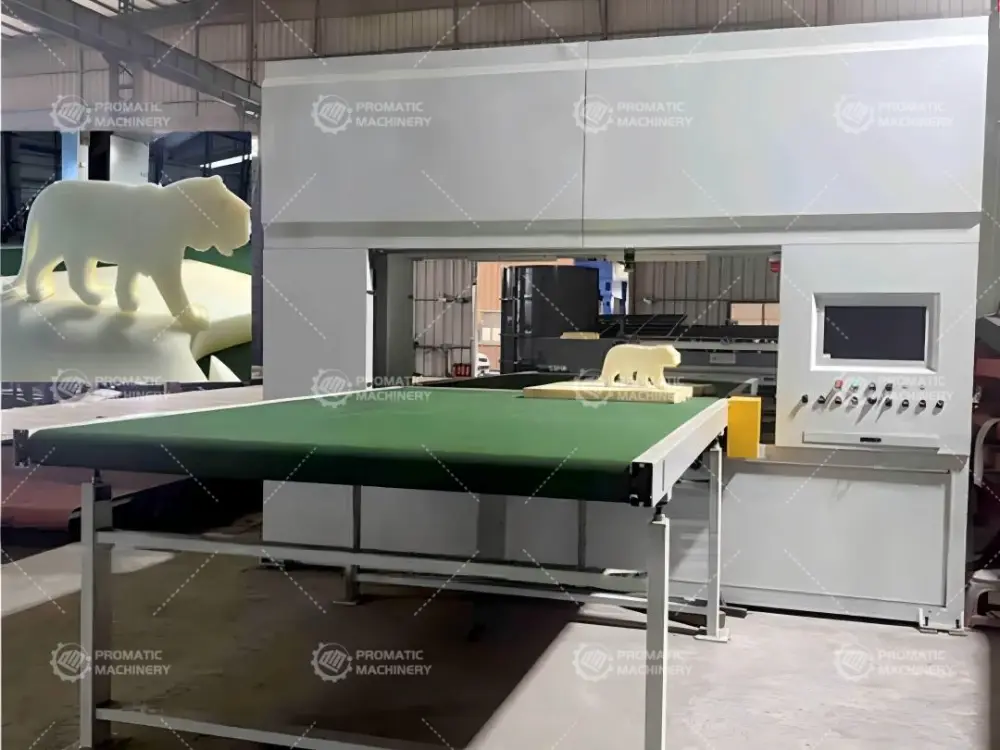

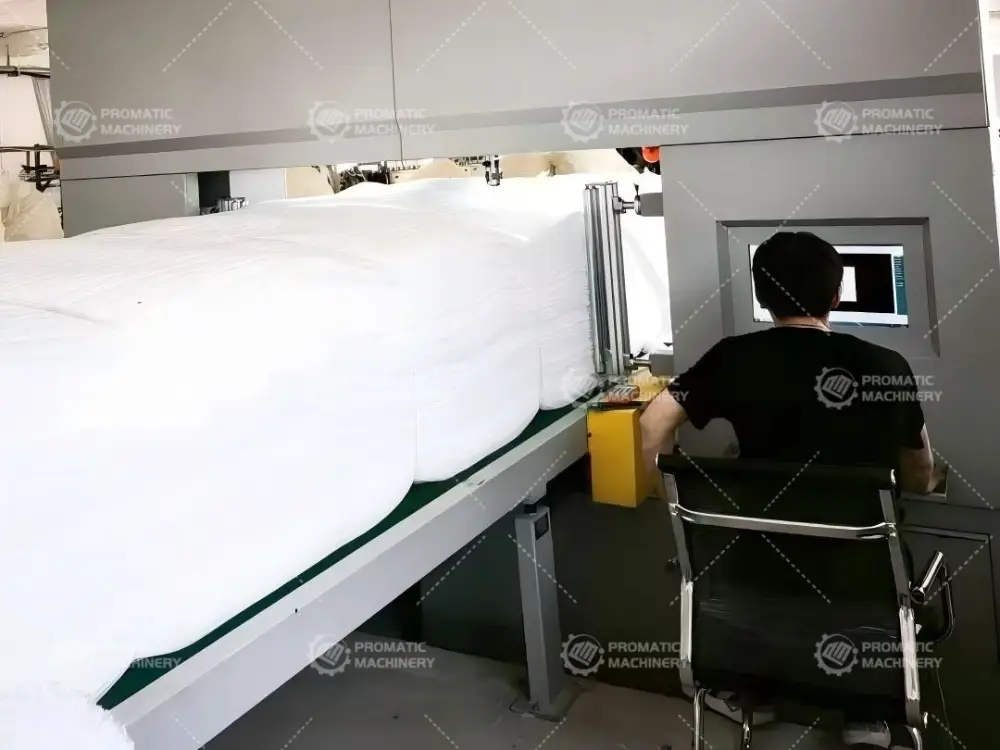

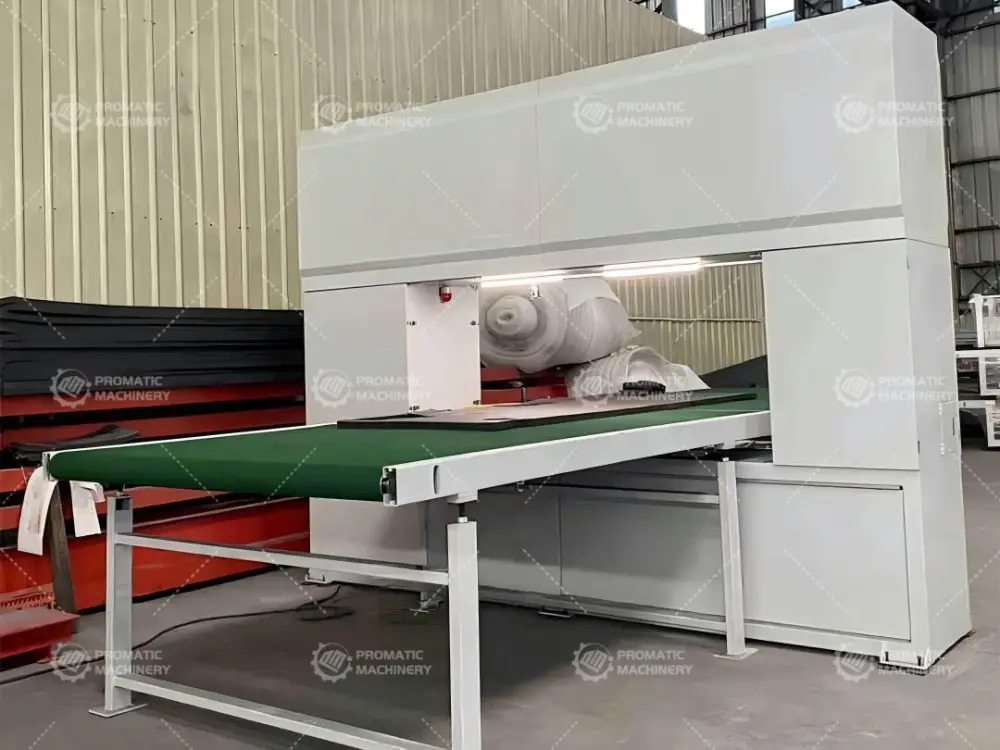

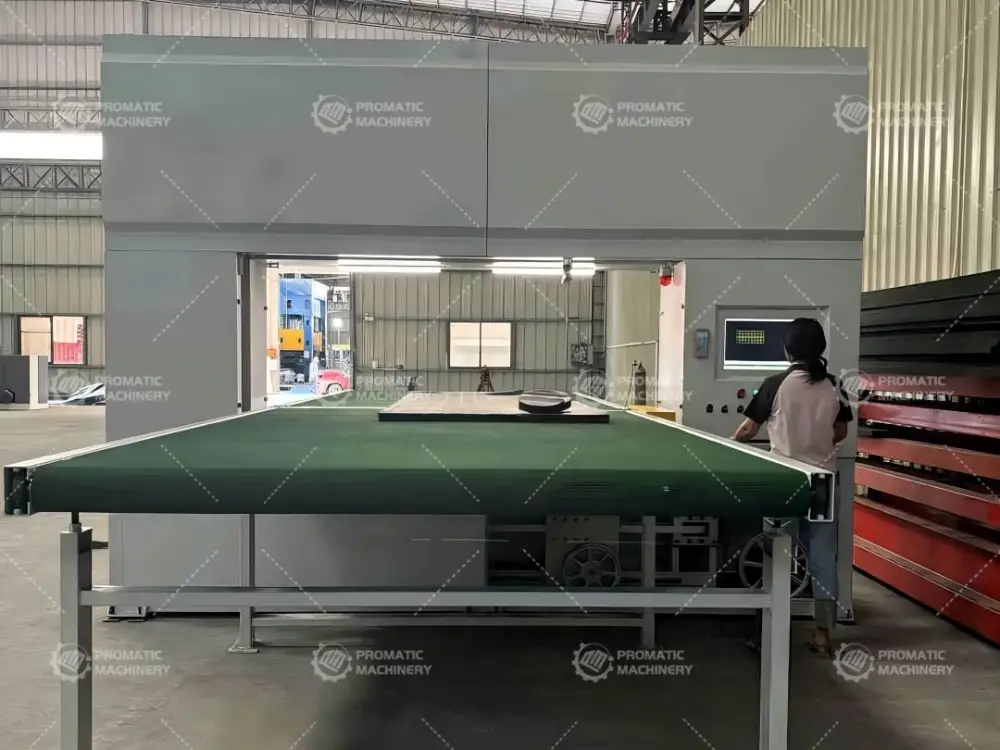

For facilities upgrading capacity, the PM-CNC2 CNC Vertical Circular Contour Cutting Machine offers a clean path to higher efficiency and more consistent results. The platform’s stability supports repeatable performance under varying loads, covering precision cutting and trimming, PU foam processing compatibility. The drive system is sized at approximately 2 kW for stable motion control. The footprint remains manageable at roughly 6000 × 4500 × 3000 mm. Service routines are straightforward, helping keep total operating costs in check.
| Specification | Details |
|---|---|
| Machine Weight | 3 T |
| Total Machine Power | 5.2 kW |
| Machine Dimensions | 6000 × 4500 × 3000 mm |
| Maximum Cutting Size | 3000 × 2000 × 1100 mm |
| Tool Size | 12485 × 3.5 × 0.6 mm |
| Machining Line Speed | 0–40 m/min |
| Machining Accuracy | ±1 mm |
| Minimum Cutting Radius | 5 mm |
| Power Supply | 220V / 380V / 415V, 50Hz / 60Hz |
| CNC Type | Industrial Controller |
| Braided Bearing | X, Y, W1, W2 |
| Manual Turntable / Conveyor Belt | Optional |
| Operating System | Windows XP or above |
| Twist Knife to Zero | Installed |
| Self-Diagnostic State | Installed |
| Knife Break Alarm | Installed |
