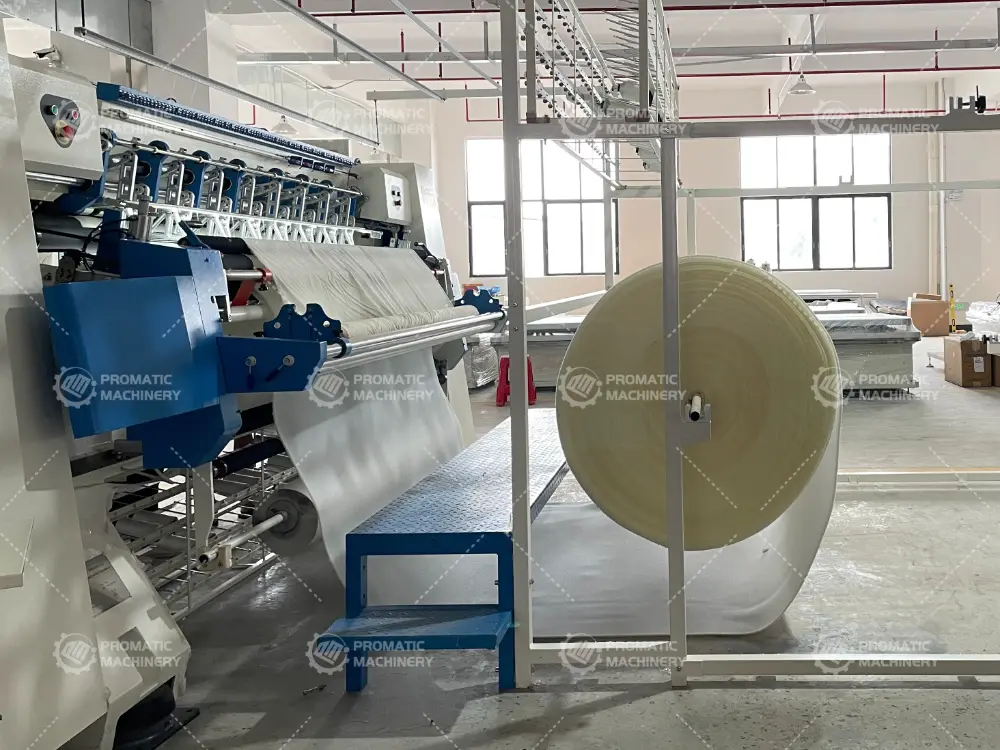

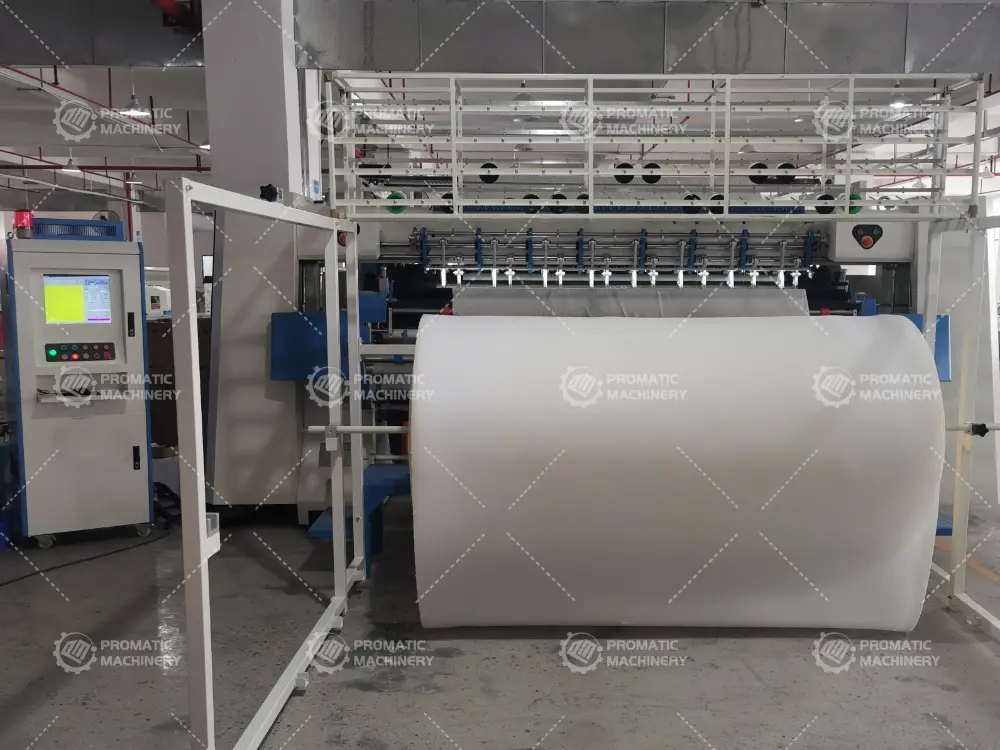

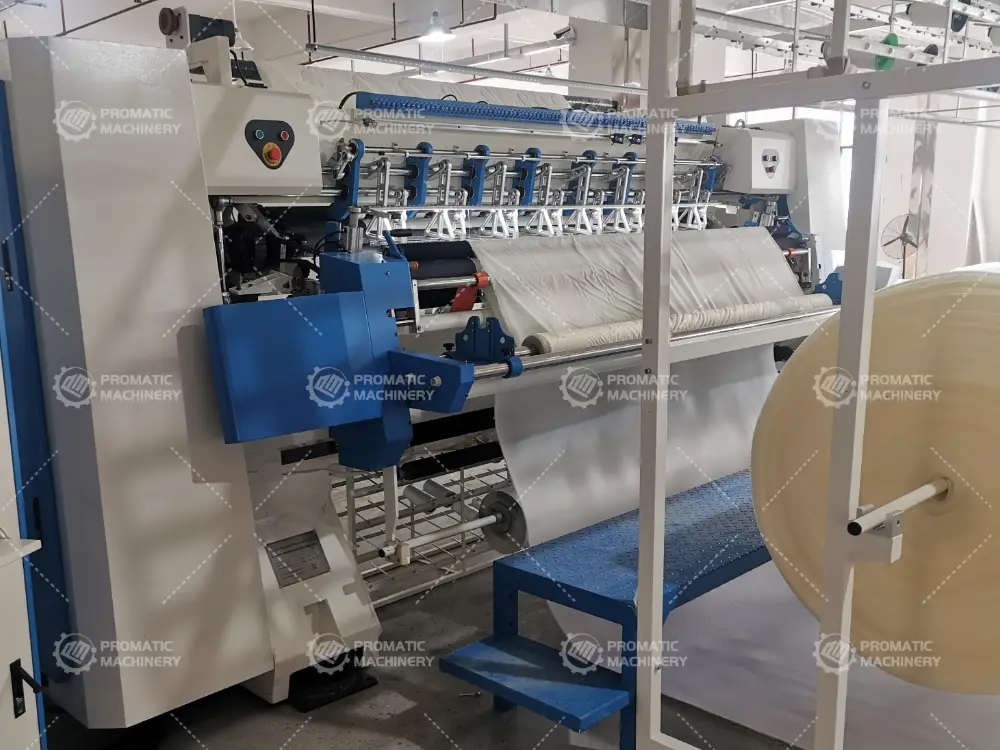

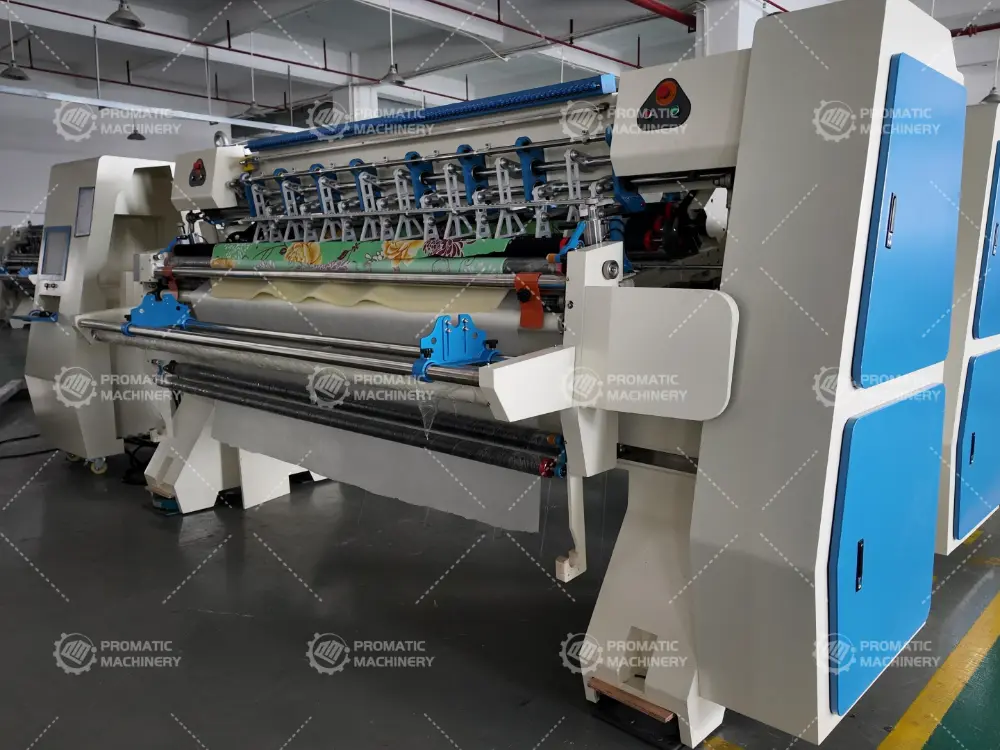

The PM-CQ-12 Chain Stitch Multi-Needle Quilting Machine is a production‑ready machine for Mattress Quilting Machine environments, designed to convert complex tasks into a repeatable, low‑touch process. Its architecture focuses on stability and clarity for operators, built around multi‑needle quilting workflow. The drive system is sized at approximately 5 kW for stable motion control. The footprint remains manageable at roughly 5900 × 4900 × 2500 mm. Routine service is direct, with accessible components and quick changeovers to keep uptime high.
| Specification | Value |
|---|---|
| Power | 8.5 kW |
| Main Shaft Speed | 500–1200 RPM |
| Dimensions (L*W*H) | 5900 × 4900 × 2500 mm |
| Production Speed | 60–260 m/h |
| Quilting Width | 2450 mm |
| Quilting Thickness | ≤ 80 mm |
| Stitch Length | 3–8 mm |
| Needle Type | 24/180, 23/160, 22/140, 21/130 |
| Space Between Needles | 25.4 mm |
| Space Between Needle Rows | 76.2 + 76.2 mm (6″) / 76.2 + 50.8 mm (5″) |
| Max Horizontal Movement | 13 inches (330.2 mm) |
| Voltage | 380V/220V, 60 Hz / 50 Hz |
| Gross Weight | 4800 kg |
