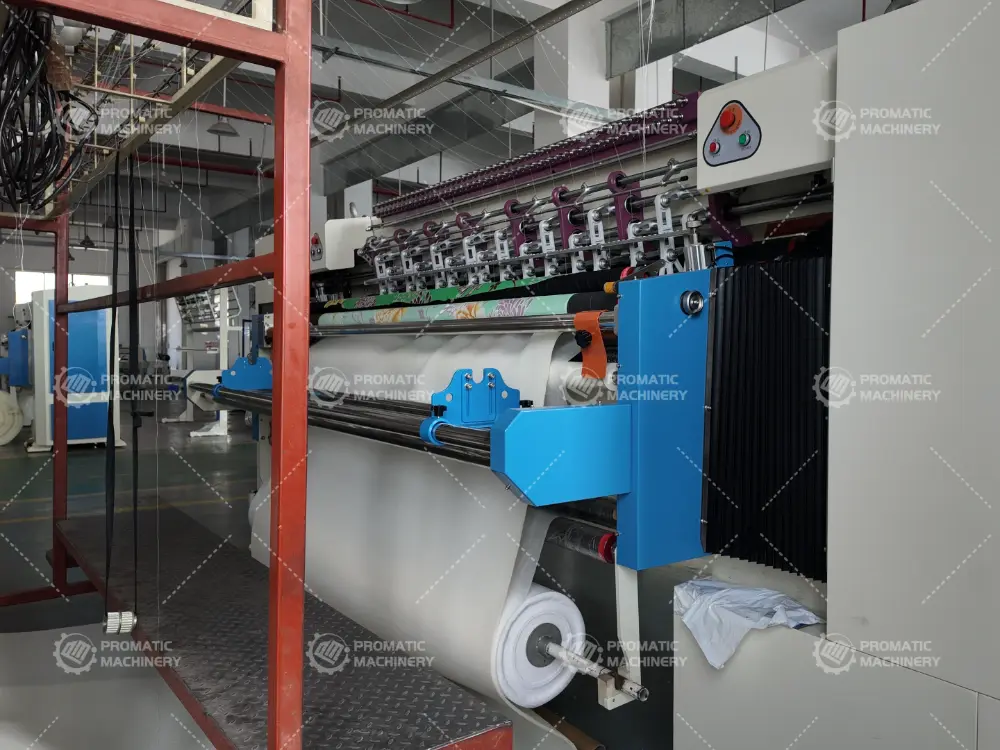

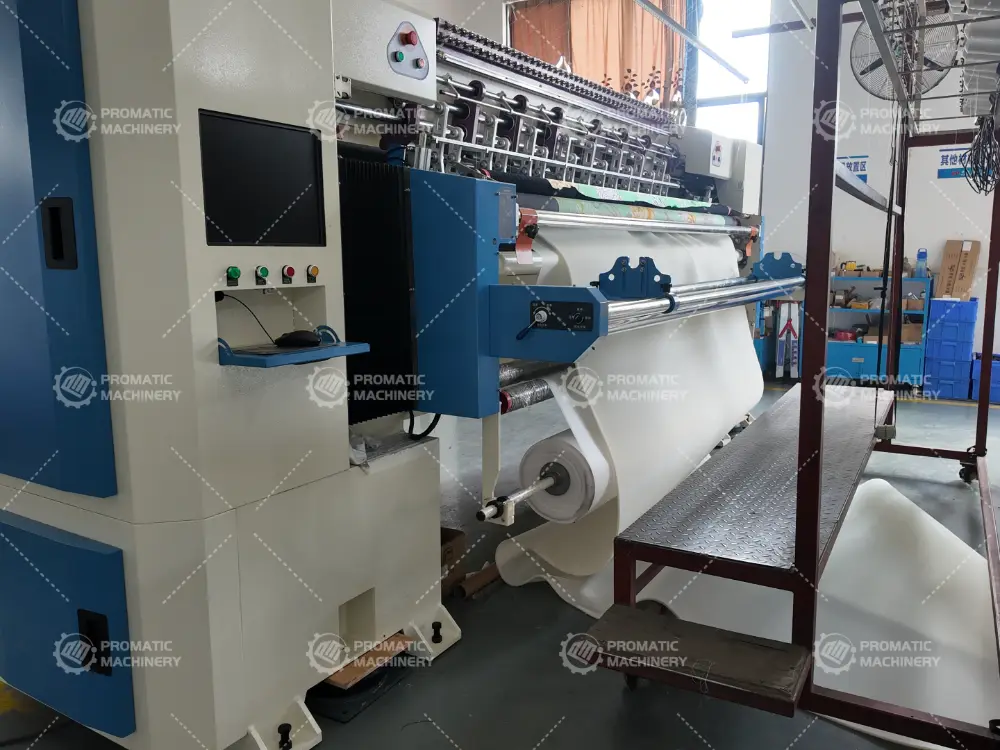

Purpose‑built for continuous duty, the PM-CQ-13 Chain Stitch Multi-Needle Quilting Machine brings precise control and practical ergonomics to busy Mattress Quilting Machine lines. Control logic prioritizes smooth motion and clean results, covering multi‑needle quilting workflow. The drive system is sized at approximately 5 kW for stable motion control. The footprint remains manageable at roughly 7300 × 5000 × 2500 mm. In day‑to‑day use, teams benefit from short setup times and predictable quality across shifts.
| Specification | Value |
|---|---|
| Power | 8.5 kW |
| Main Shaft Speed | 600–1300 RPM |
| Dimensions (L*W*H) | 7300 × 5000 × 2500 mm |
| Production Speed | 60–300 m/h |
| Quilting Width | 2450 mm |
| Quilting Thickness | ≤ 80 mm |
| Stitch Length | 3–8 mm |
| Needle Type | 24/180, 23/160, 22/140, 21/130 |
| Space Between Needles | 12.7 mm / 25.4 mm |
| Space Between Needle Rows | 76.2 + 76.2 mm (6″) / 76.2 + 50.8 mm (5″) |
| Max Horizontal Movement | 13 inches (330.2 mm) |
| Voltage | 380V/220V, 60 Hz / 50 Hz |
| Gross Weight | 5500 kg |
