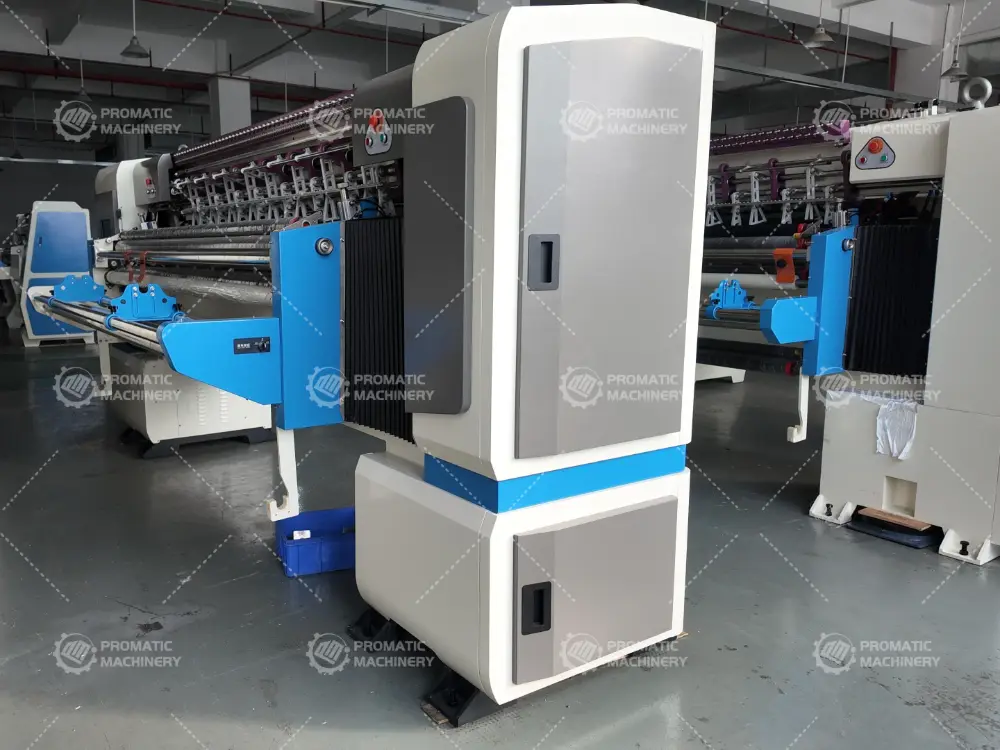

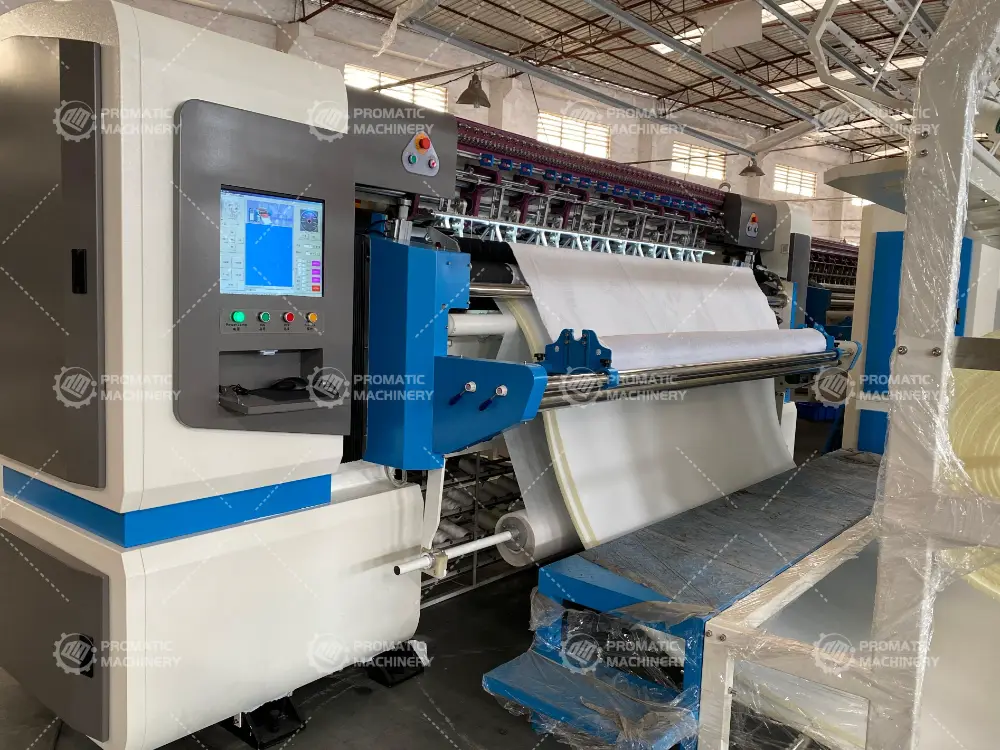

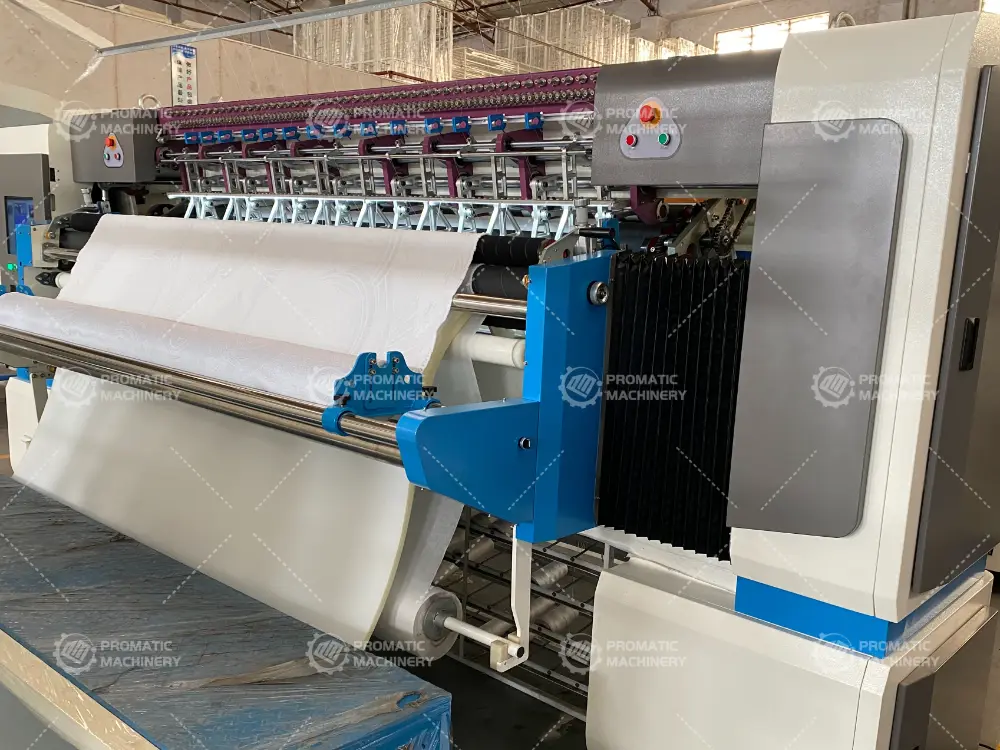

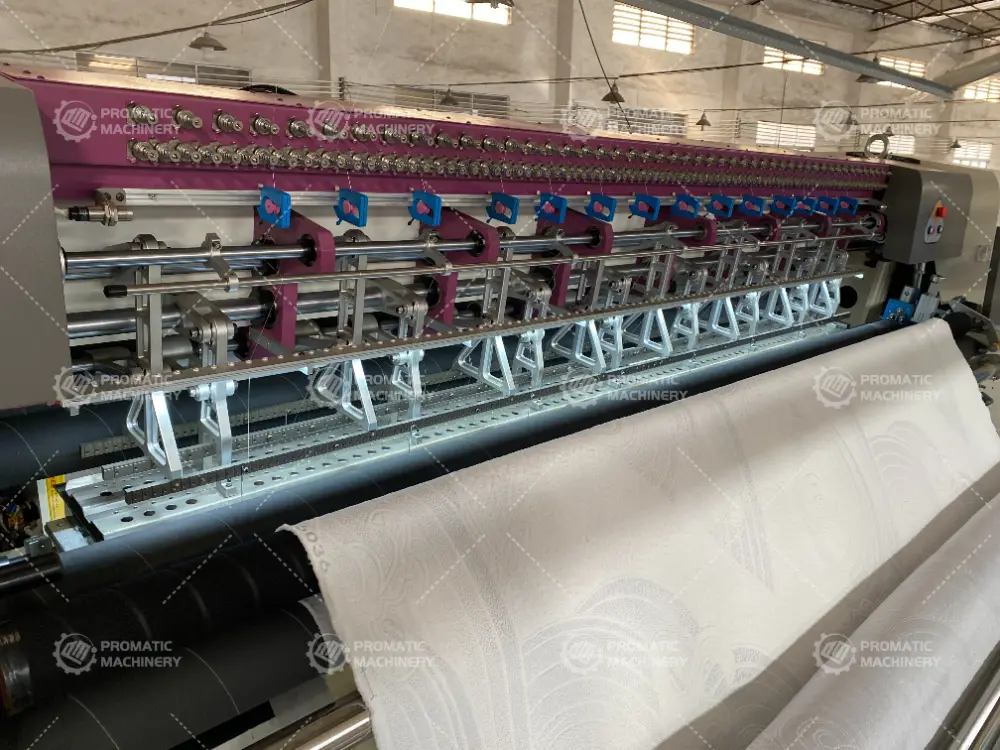

With a balance of speed, accuracy, and durability, the PM-CQ-14 Chain Stitch Multi-Needle Quilting Machine helps manufacturers standardize outcomes and scale capacity responsibly. The system’s mechanical layout and controls reduce operator load and limit variation between batches, including multi‑needle quilting workflow. The drive system is sized at approximately 11 kW for stable motion control. The footprint remains manageable at roughly 7300 × 4900 × 2500 mm. Maintenance points are simplified to shorten downtime and extend service intervals.
| Specification | Value |
|---|---|
| Power | 11 kW |
| Main Shaft Speed | 600–1400 RPM |
| Dimensions (L*W*H) | 7300 × 4900 × 2500 mm |
| Production Speed | 80–330 m/h |
| Quilting Width | 2450 mm |
| Quilting Thickness | ≤ 80 mm |
| Stitch Length | 3–8 mm |
| Needle Type | 24/180, 23/160, 22/140, 21/130 |
| Space Between Needles | 12.7 mm / 25.4 mm |
| Space Between Needle Rows | 76.2 + 76.2 mm (6″) / 76.2 + 50.8 mm (5″) |
| Max Horizontal Movement | 13 inches (330.2 mm) |
| Voltage | 380V/220V, 60 Hz / 50 Hz |
| Gross Weight | 5800 kg |
