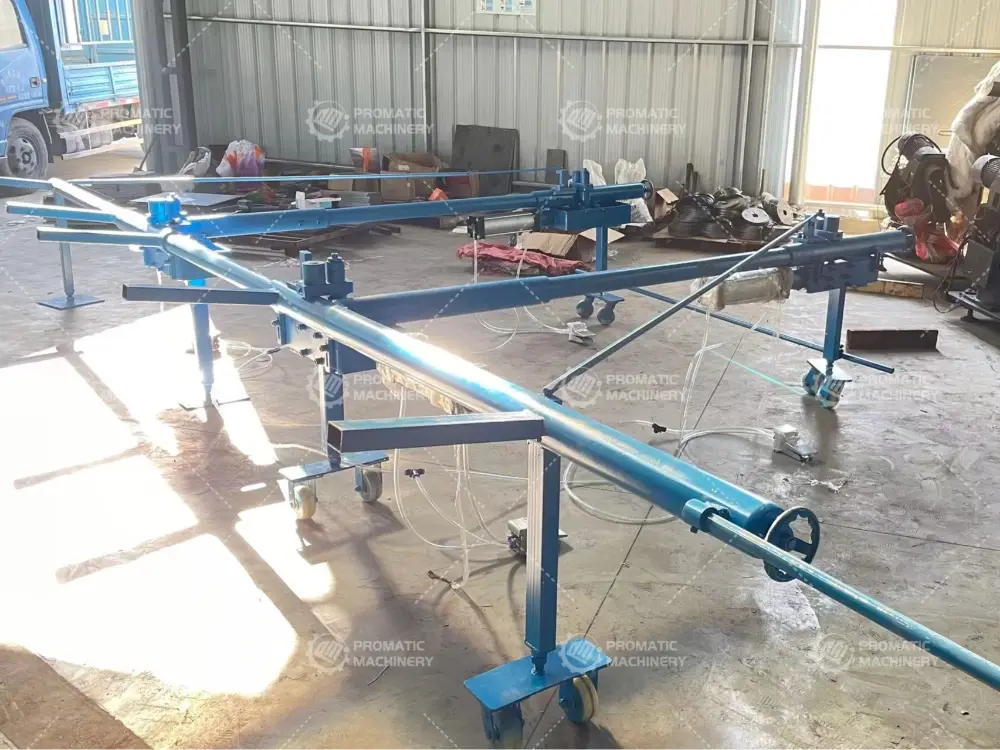

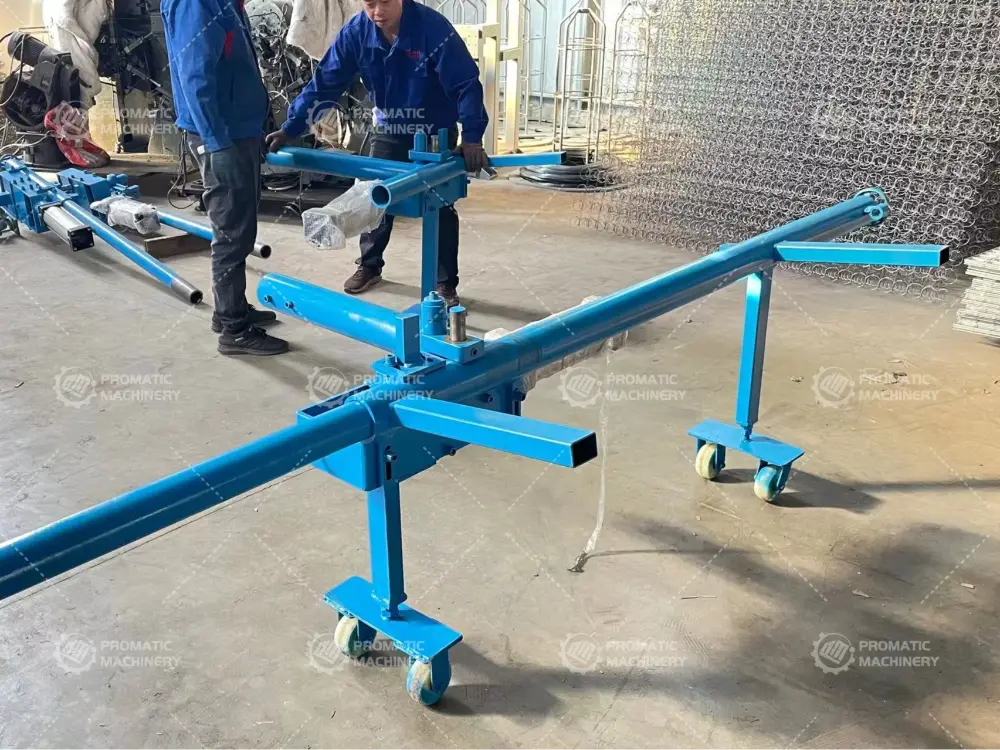

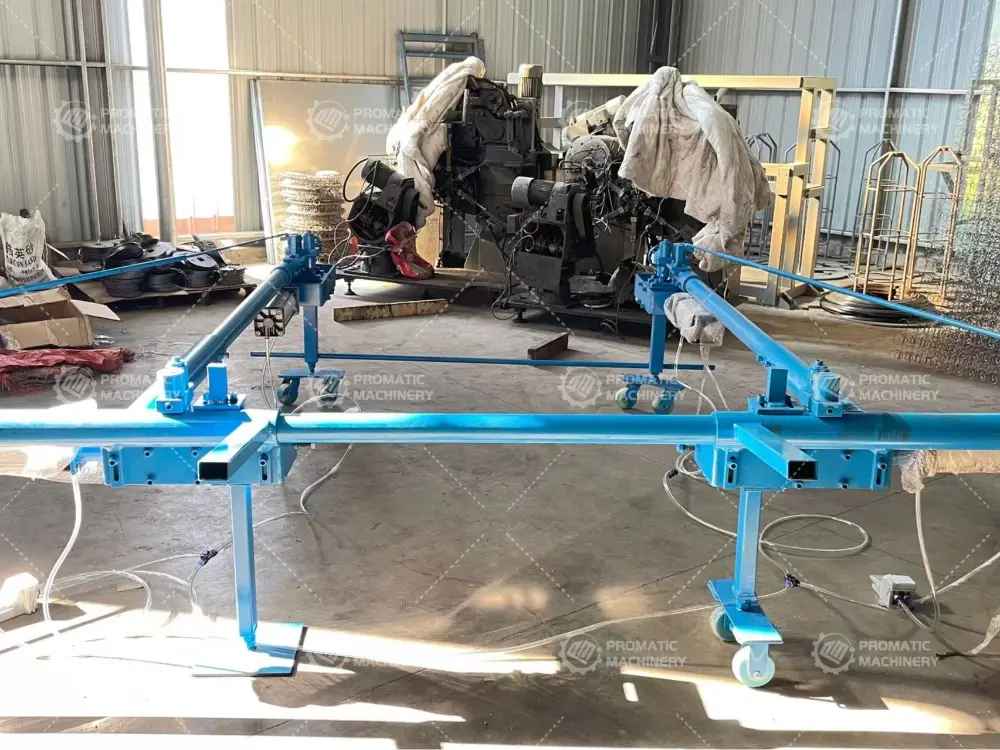

The PM-BDB Pneumatic Border Bending Machine is a specialized solution for bending and forming mattress border wires with high efficiency. Designed to process 8¨C13 wires at the same time, it dramatically improves productivity compared to traditional single-wire methods. The entire bending process is powered by pneumatic cylinders, ensuring smooth operation, consistent accuracy, and reliable performance.
This machine is suitable for border wires with diameters ranging from ¦µ3¨C¦µ6 mm, making it highly adaptable to different mattress frame specifications. Its wire storage mechanism can accommodate up to 7 cm in height and 25 cm in length, while the flat iron plate ensures wires are aligned and fed seamlessly into the bending wheel for precise forming.
Manufacturers benefit from its customizable settings, which allow adjustments to arc seat diameter and other specifications based on production requirements. The sturdy build and advanced pneumatic system provide stable, long-lasting performance, making it an ideal piece of equipment for modern mattress factories.
Compact in structure yet powerful in operation, the PM-BDB combines a 4 kW straightening motor and 1.1 kW cutting motor for optimal efficiency. With a maximum cutting length of 7800 mm and a machine weight of 675 kg, it balances power and practicality for large-scale mattress frame production.
| Specification | Value |
|---|---|
| Power Supply | 3-Phase, 380V, 50Hz |
| Wire Diameter | Φ3–Φ6 mm |
| Machine Weight | 675 kg |
| Maximum Cutting Length | 7800 mm |
| Straightening Motor | 4 kW, 1440 r/min |
| Cutting Motor | 1.1 kW, 910 r/min |
| Main Machine Dimensions | 1460 × 495 × 1335 mm |
