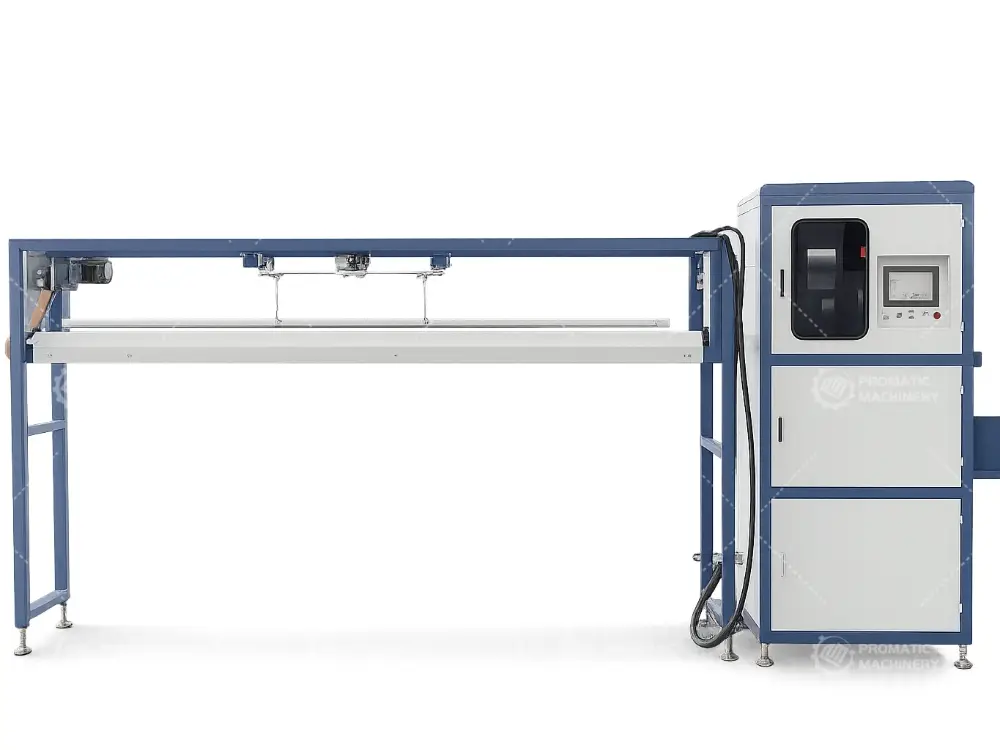

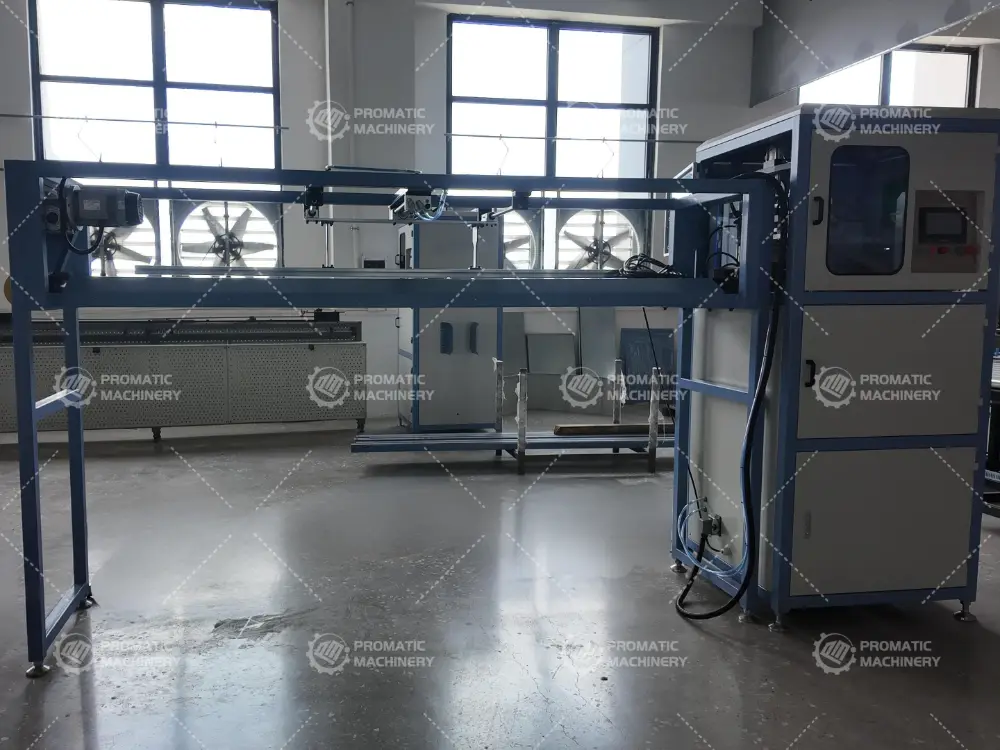

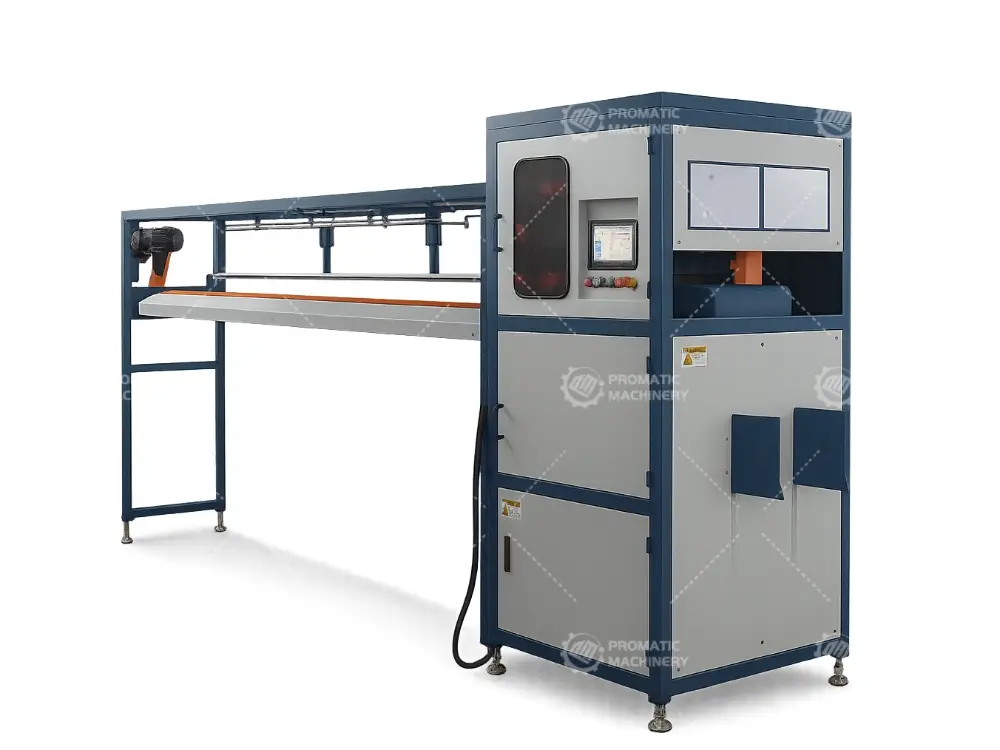

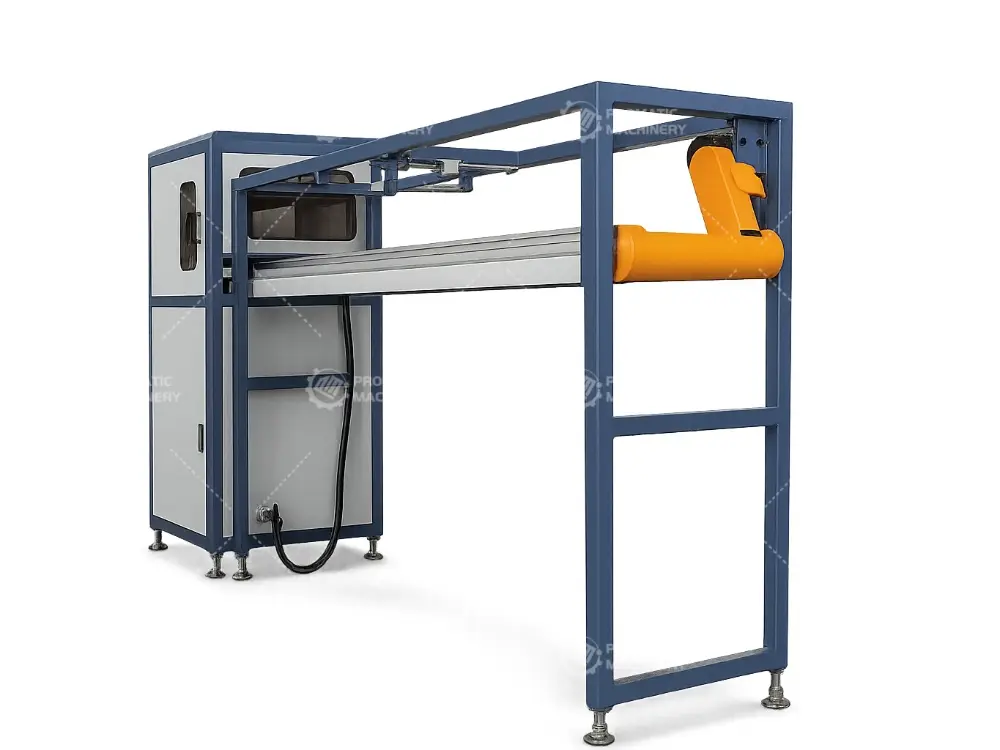

The PM-CT Automatic Pocket Spring Cutting Machine provides an advanced solution for cutting pocket spring strips with high precision and efficiency. Suitable for both straight and barrel-shaped springs, it easily adapts to varying spring heights and core diameters, offering manufacturers great flexibility.
One of its key advantages is the integration of ultrasonic welding technology, which reduces material consumption and enhances cutting quality. This makes the process not only more cost-effective but also more environmentally friendly.
The machine¡¯s control system allows calculations and anomaly detection to be performed simultaneously, ensuring cutting accuracy while preventing production errors. With an average cutting speed of 25 cuts per minute and low power consumption of just 1 kW, it delivers excellent productivity with minimal operating costs.
Compact in size yet robust in construction, the PM-CT combines reliability with ease of use. Its lightweight design (680 kg) and user-friendly adjustments make it ideal for mattress factories seeking efficient and consistent performance. With strong safety standards and durable build, it is a valuable addition to any modern mattress production line.
| Pocket Spring Height | 80–250 mm |
| Suitable Spring Diameter | Φ40–76 mm |
| Average Speed | 25 cuts/min |
| Average Power Consumption | 1 kW |
| Cutting Interval | > 0.02 m³/min, 0.8 MPa |
| Air Supply Requirements | ≥ 0.02 m³/min, 0.8 MPa |
| Gross Weight | 680 kg |
| Overall Dimension | 4500 × 850 × 2050 mm |
