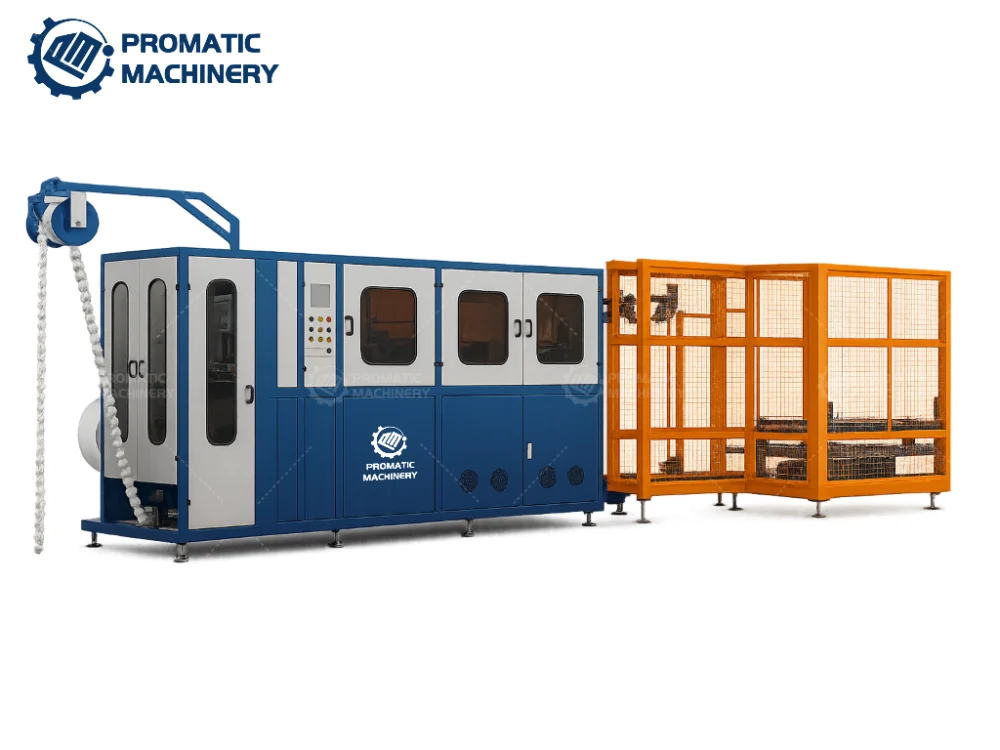

The PM-SG-130 Single Wire Pocket Spring Machine is engineered to provide manufacturers with a high-speed, fully automated solution for pocket spring production. Designed for versatility, it supports both straight and barrel-shaped springs, making it ideal for a wide range of mattress applications.

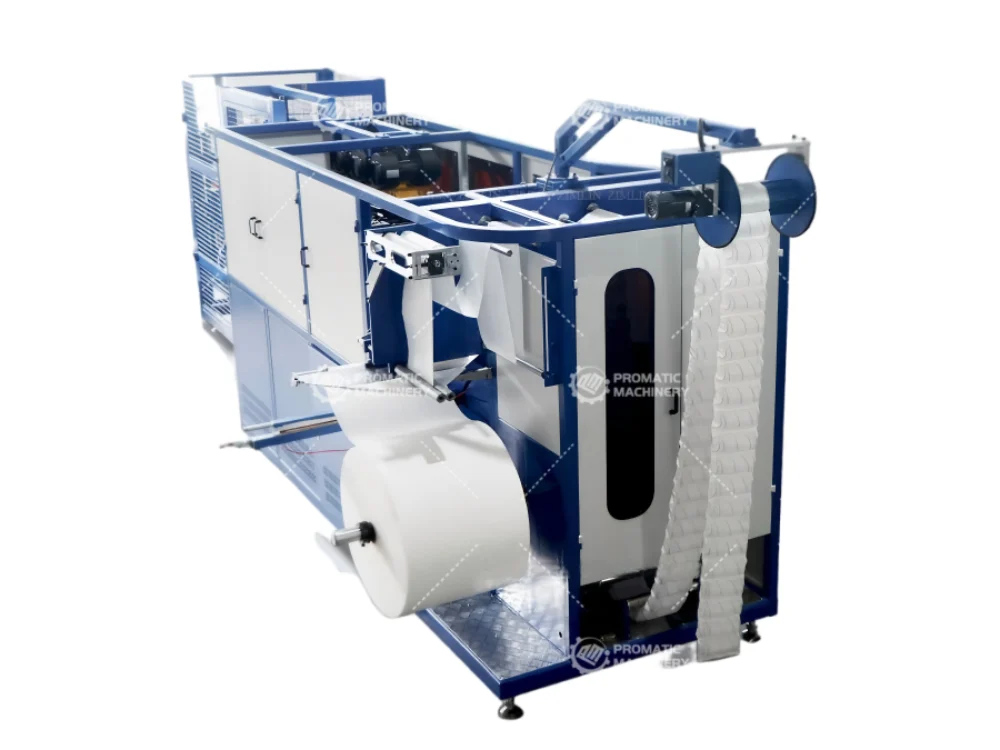

Its user-friendly design allows quick adjustments for springs of different heights and heat treatment devices, ensuring flexibility in production. Equipped with a non-woven fabric connection unit, the machine effectively reduces material consumption and labor intensity, offering significant cost savings over time.
The machine integrates multiple fault detection systems that promptly identify issues, reducing scrap rates and safeguarding production efficiency. At the heart of the system is a single-line CNC winding head that eliminates the need for manual adjustments, guaranteeing precise performance and consistent spring quality.
Additional protective devices enhance operational safety and reduce mechanical wear, extending machine lifespan. With a maximum output of 130 springs per minute, the PM-SG-130 combines speed, reliability, and intelligent automation to meet the demands of modern mattress manufacturers.
| Efficiency | 130 pcs/min |
| Non-Woven Supply | 60–100 g/m² |
| Pocket Spring Height | 80–250 mm (customizable) |
| Wire Diameter | 1.6–2.4 mm |
| Spring Core Diameter | Φ55–72 mm (customizable) |
| Non-Woven Width | 340–700 mm |
| Power Supply | 23 kW |
| Total Power | 38 kW |
| Air Requirement | 0.02 m³/min, 0.8 MPa |
| Gross Weight | 3500 kg |
| Size (Main Machine) | 3700 × 2000 × 2100 mm |
