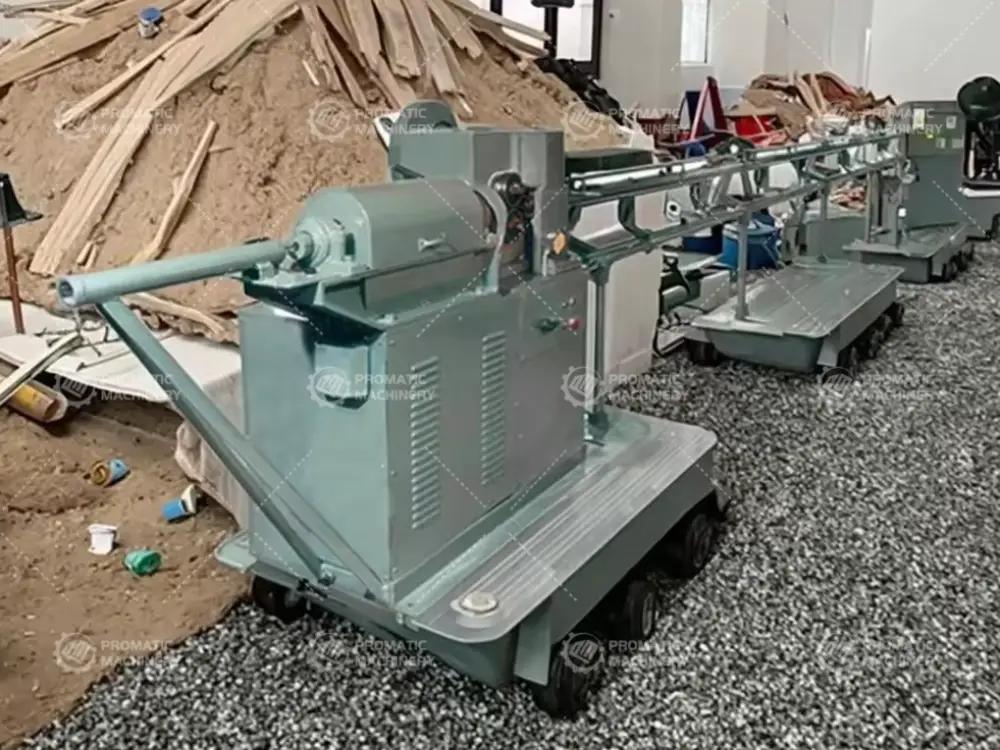

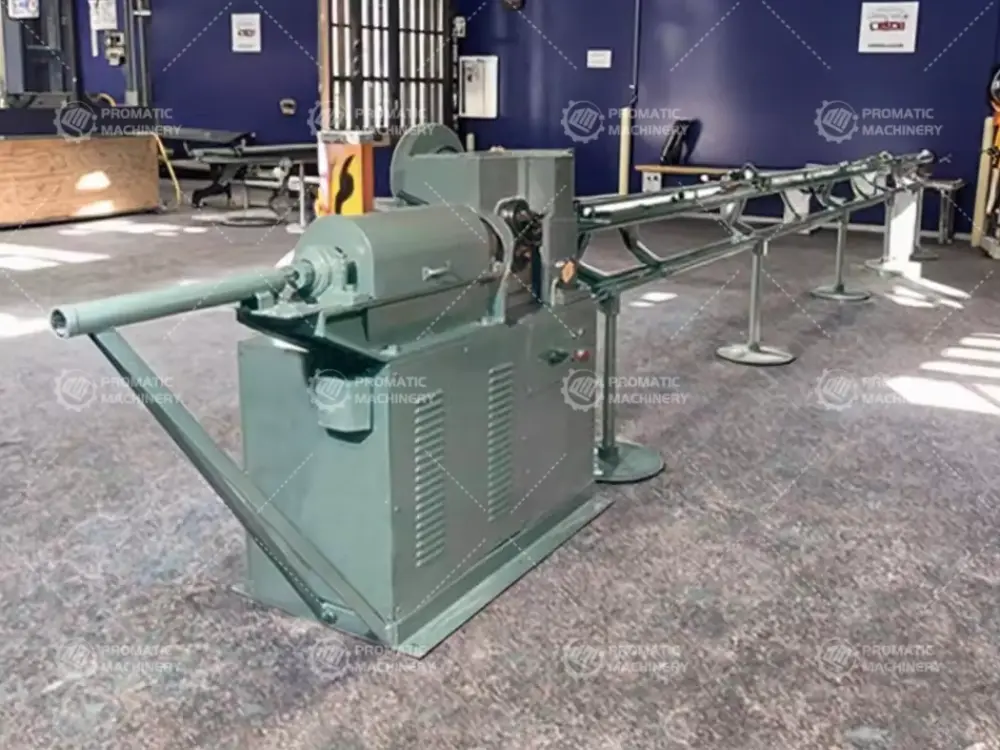

The PM-STC Straighten & Cutting Machine provides an efficient and versatile solution for wire processing across multiple industries. Specially engineered for straightening and cutting mattress frame wires, it can also handle a wide range of materials such as iron, stainless steel, carbon steel, copper, and galvanized wires.
Equipped with independent motors for straightening and cutting, the machine delivers stable and balanced wire feeding. Dual feeding structures ensure smooth operation, while the high-hardness alloy cutting blades provide clean, precise cuts with minimal error. Cutting lengths can be adjusted flexibly from 200 mm to 3000 mm, offering great versatility in applications.
Built with a sturdy frame made of high-strength steel, the PM-STC ensures durability and long service life. The straightening shaft, crafted from 45# steel and processed through precision machining, maintains concentricity and stability, preventing deformation or breakage during long-term use. The pressure rollers and straightening blocks, made from alloy and mold steel with heat treatment, further extend the machine¡¯s lifespan and enhance wear resistance.
This machine is widely applicable in industries such as mesh production, wire crafts, hardware shelving, pet cages, and lighting accessories. Compact in structure and easy to install, it is designed for convenient operation, reliable performance, and efficient wire processing.
| Specification | Value |
|---|---|
| Straightening Wire Diameter | Φ1–4 mm |
| Straightening Speed | 25 m/min |
| Cutting Length | 200–3000 mm |
| Fixed-Length Cutting Method | Mechanical fixed-length cutting |
| Straightening Motor Power | 0.75 kW |
| Cutting Motor Power | 0.55 kW |
