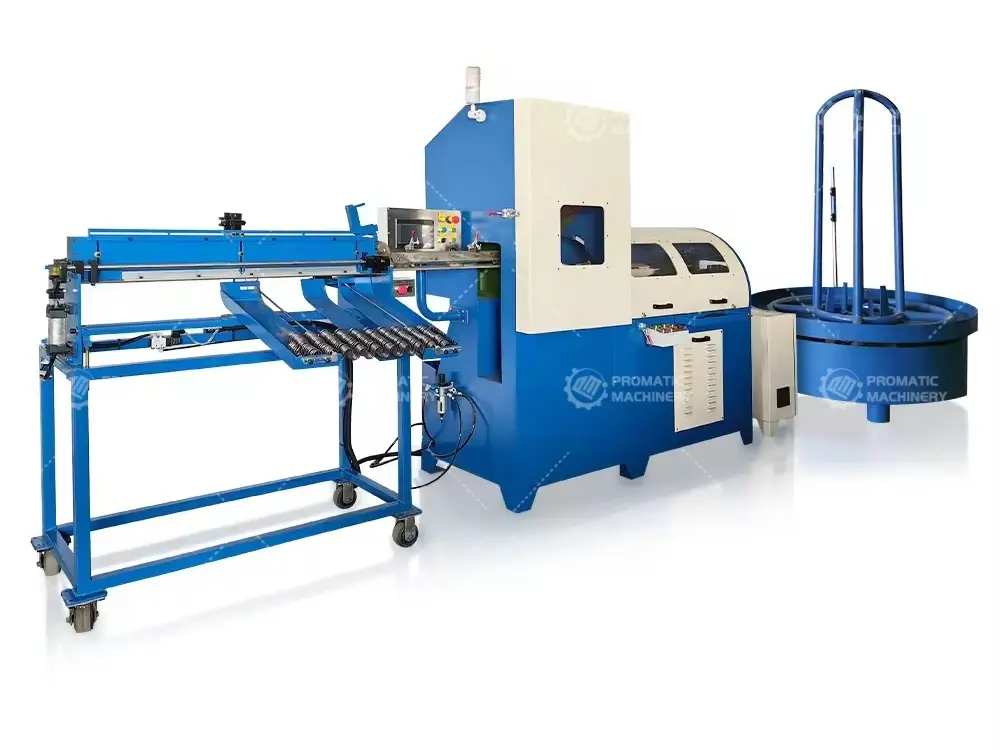

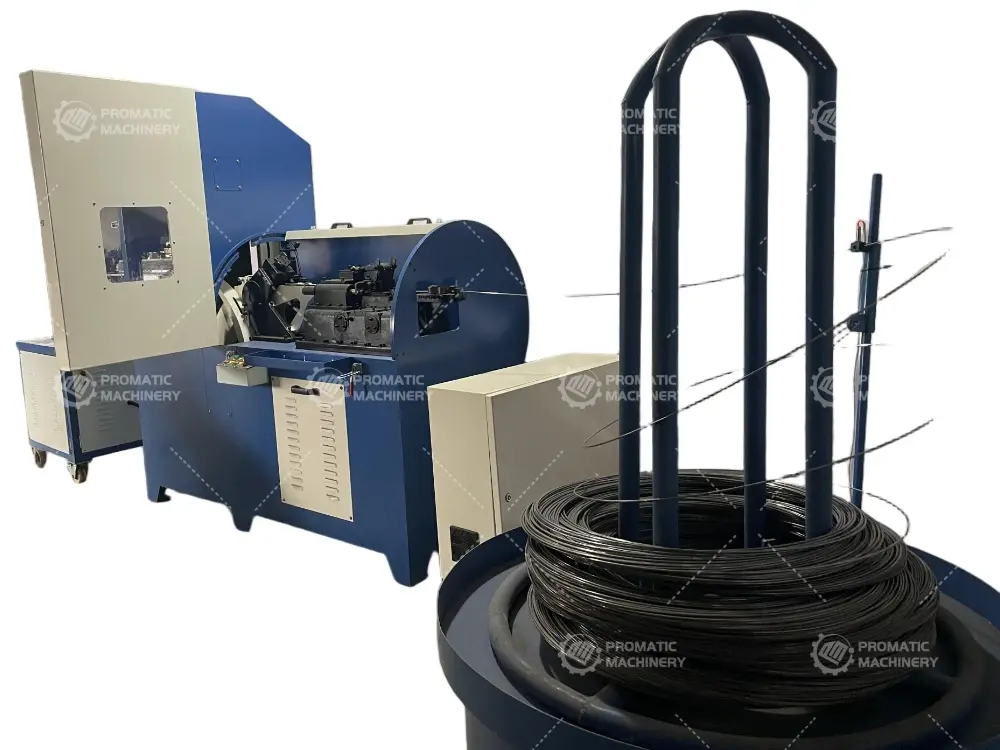

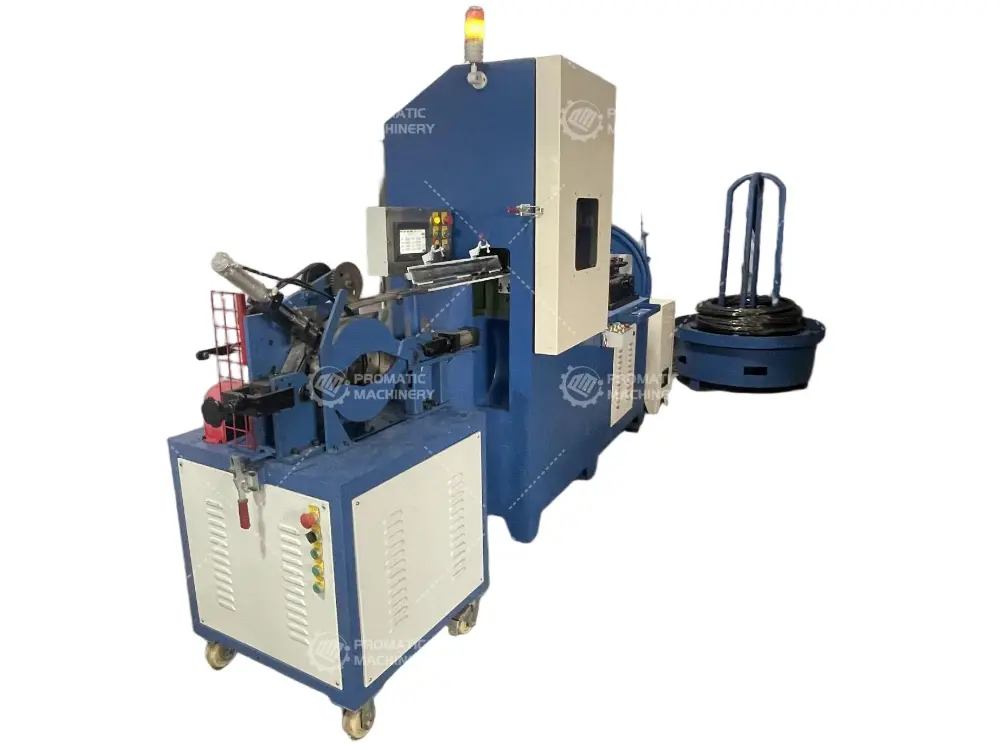

The PM-ZZ-500 High Speed Zig-Zag Sofa Spring Machine is a highly efficient solution for sofa spring production, delivering fast output with unmatched reliability. Capable of producing 400 single peaks or 800 double peaks per minute, it ensures manufacturers can meet high-volume demands with ease.
Its user-friendly design and intuitive controls simplify operation, making it accessible even for less experienced operators. The machine also integrates noise reduction technology, maintaining a quieter work environment compared to traditional models, which improves operator comfort and workplace conditions.
Built with high-quality, durable components, the PM-ZZ-500 offers convenient maintenance and long service life. Adjustable cutting options for single or double peaks, along with customizable wire diameters, give manufacturers the flexibility to adapt to diverse product specifications.
With a punching pressure of 8 tons, precise feeding speed of 12 m/min, and a total power of 12 kW, the machine provides stable and consistent performance. Safety features are also included to protect both operators and equipment, ensuring safe and continuous production. Compact yet powerful, the PM-ZZ-500 is an excellent choice for modern sofa manufacturers seeking speed, reliability, and flexibility.
| Specification | Value |
|---|---|
| Speed | 400 single peaks/min, 800 double peaks/min |
| Spring Height | 45–52 mm |
| Inner and Outer Peak Width | 24–34 mm (Inner peak width min. 16 mm) |
| Wire Diameter | Φ2.8–4.2 mm (Customizable: Φ2.6–4.2 mm) |
| Standard Spring Spacing | 20–30 mm |
| Feeding Speed | 12 m/min |
| Cutting Type | Adjustable single or double peaks |
| Punching Motor Power | 1.1 kW |
| Punching Pressure | 8 tons |
| Machine Weight | 1000 kg |
| Total Power | 12 kW |
| Voltage Requirement | 3 phase 380V, 60 Hz |
| Machine Dimensions | 6200 × 1800 × 2000 mm |
