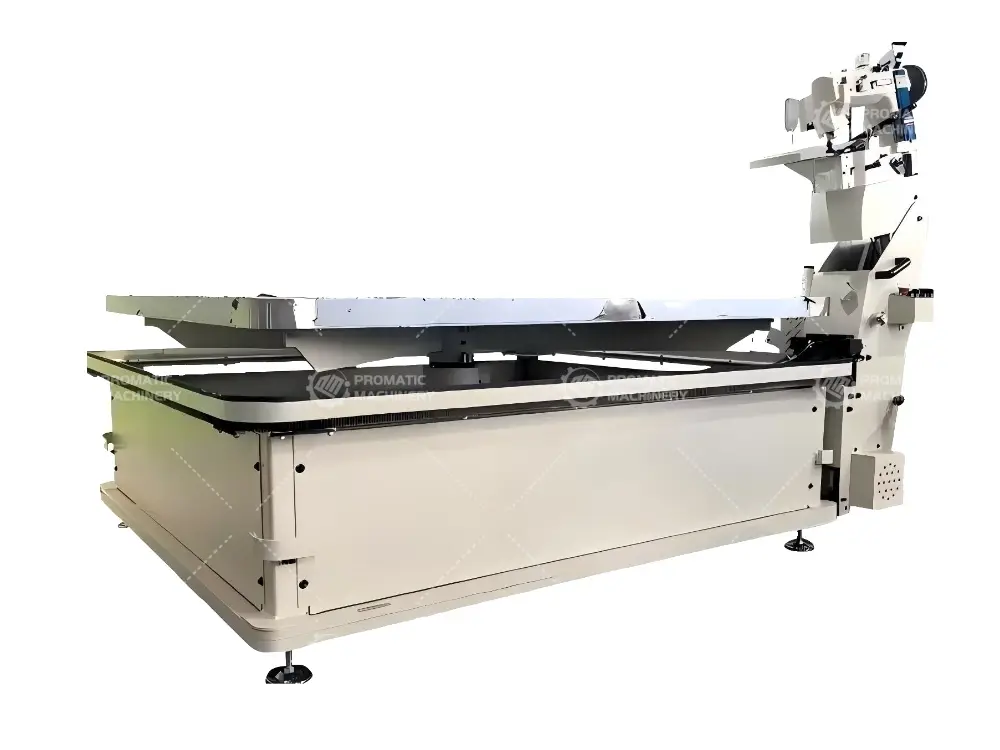

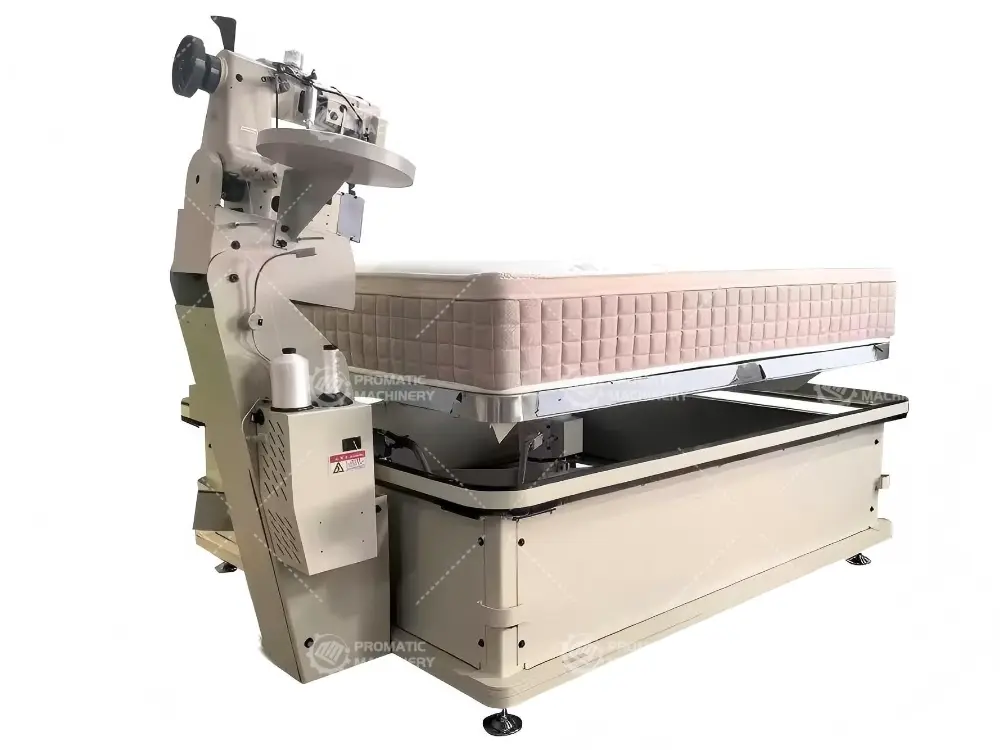

Purpose‑built for continuous duty, the PM-WB3 Tape Edge Machine (Chain Stitch) brings precise control and practical ergonomics to busy Mattress Tape Edge Machine lines. Control logic prioritizes smooth motion and clean results, including multi‑needle quilting workflow. The drive system is sized at approximately 1 kW for stable motion control. The footprint remains manageable at roughly 3300 × 2900 × 1500 mm. In day‑to‑day use, teams benefit from short setup times and predictable quality across shifts.
| Specification | Details |
|---|---|
| Power | 1 kW |
| Model Size | 3300*2900*1500 mm |
| Machine Table Size | 1600*2100 mm |
| Table Lifting Stroke | 0–280 mm |
| Rack Workbench Lift Form | Screw Drive / Electric Lift |
| Chassis Workbench Lift Form | Electric Adjustment of Inclination |
| Chassis Drive Form | Reducer |
| Quilting Thickness | 30–450 mm |
| Sewing Maximum Depression Angle | 40° |
| Voltage | 380V, 50Hz / 220V, 50Hz, 3 Phase |
| Gross Weight | 600 kg |
| Sewing Head | Singer 300U (Chain Stitch) |
