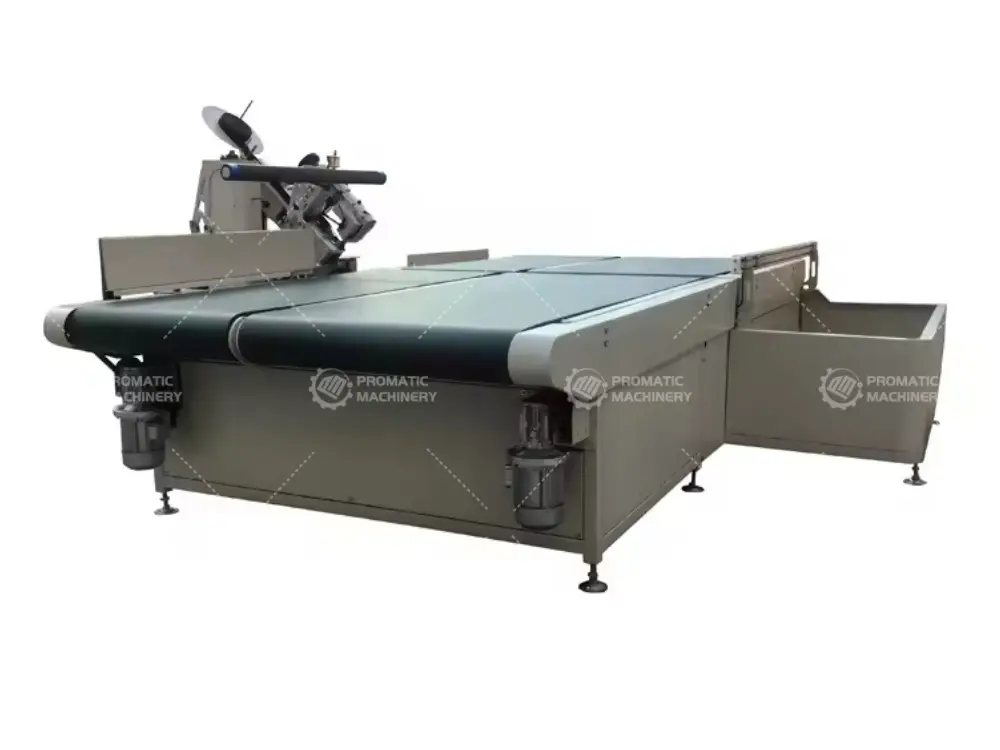

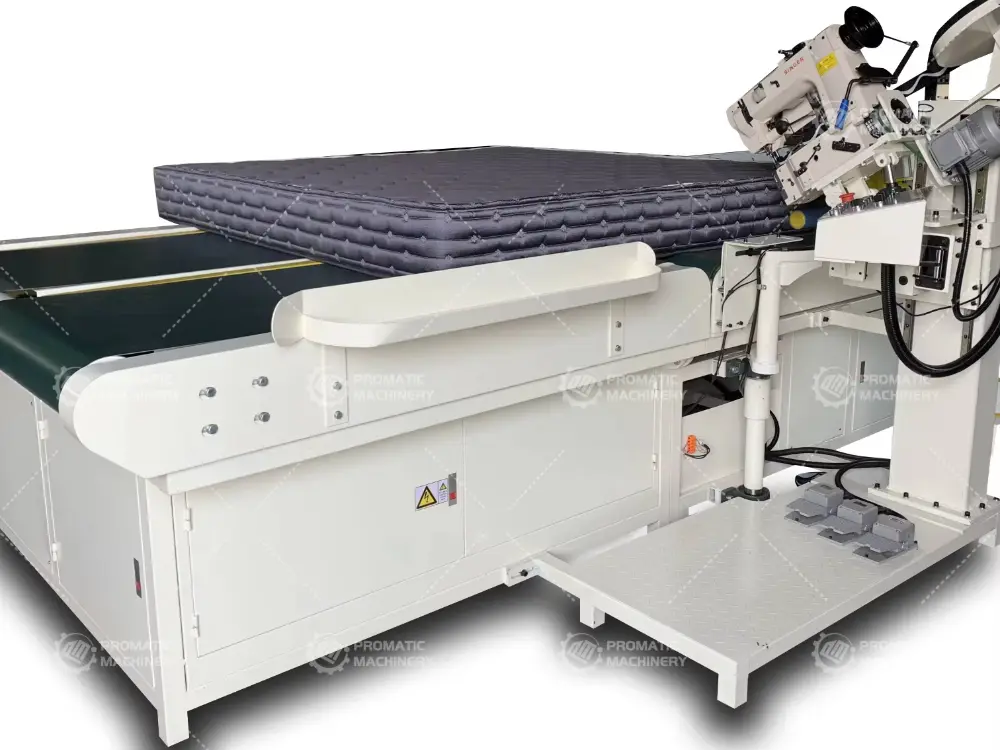

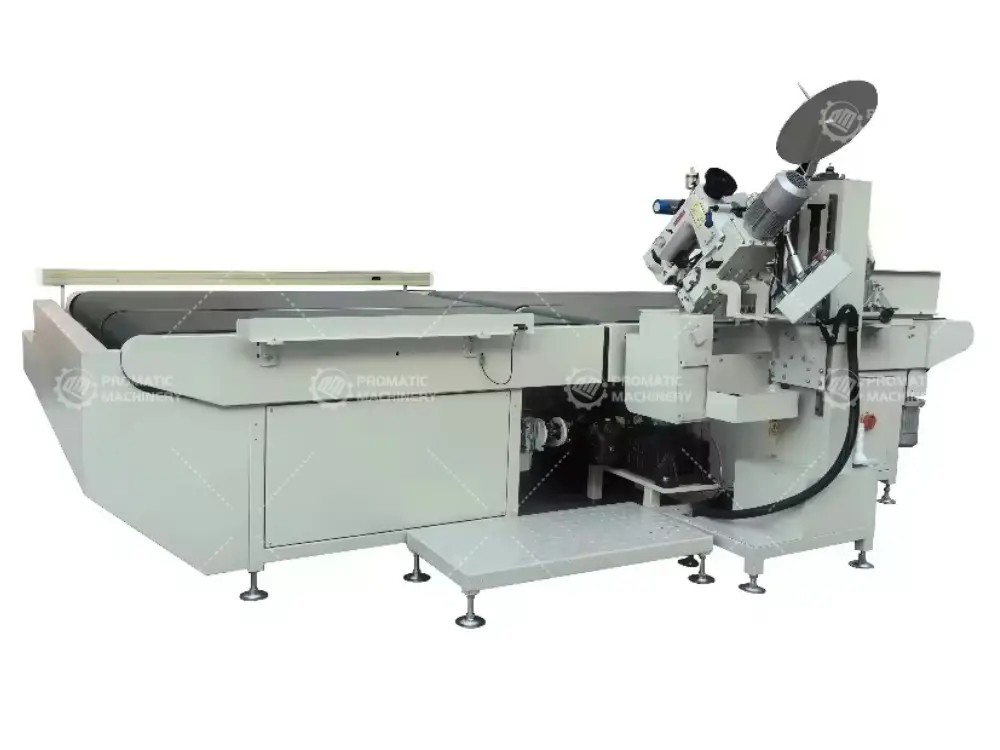

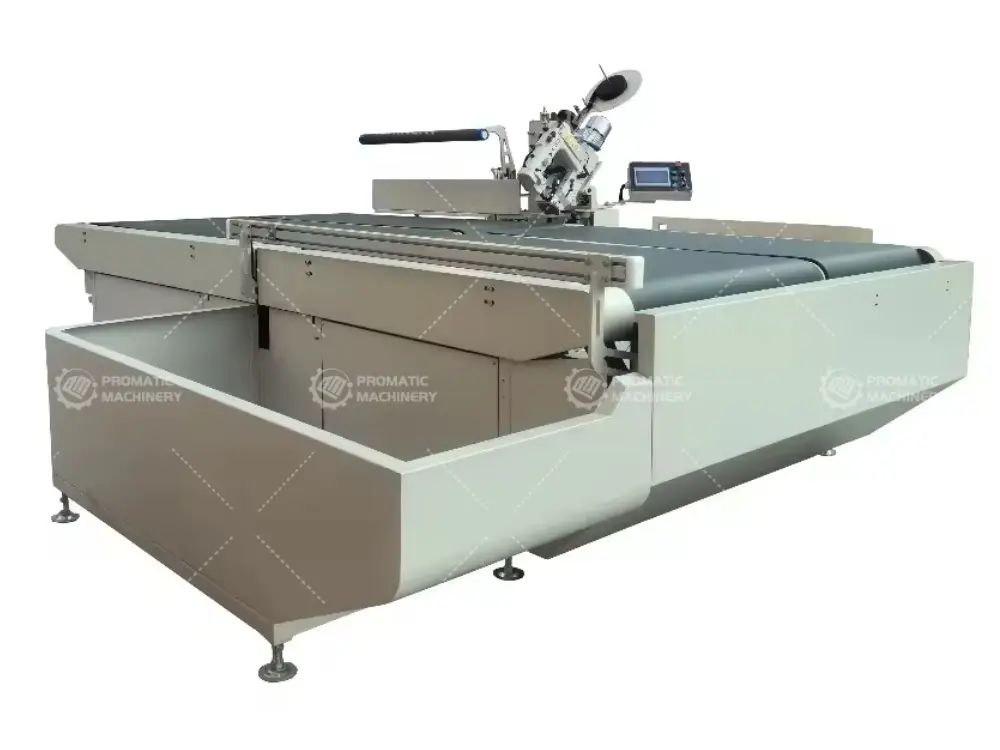

With a balance of speed, accuracy, and durability, the PM-WB5 Automatic Tape Edge Machine helps manufacturers standardize outcomes and scale capacity responsibly. The system’s mechanical layout and controls reduce operator load and limit variation between batches, built around multi‑needle quilting workflow. The drive system is sized at approximately 1 kW for stable motion control. Air requirements are straightforward, around 1.0 MPa for reliable actuation. The footprint remains manageable at roughly 4300 × 1800 × 900 mm. Maintenance points are simplified to shorten downtime and extend service intervals.
| Specification | Details |
|---|---|
| Power | 1 kW |
| Machine Table Size | 4300*1800*900 mm |
| Head Speed | 1400 RPM |
| Production Speed | 15–25 PCS/H |
| Quilting Thickness | 40–500 mm |
| Stitch Length | 3–7 mm |
| Head Lift Range | 0–500 mm |
| Air Pressure | 0.6–1.0 MPa |
| Voltage | 380V, 50Hz / 220V, 50Hz, 3 Phase |
| Gross Weight | 1700 kg |
