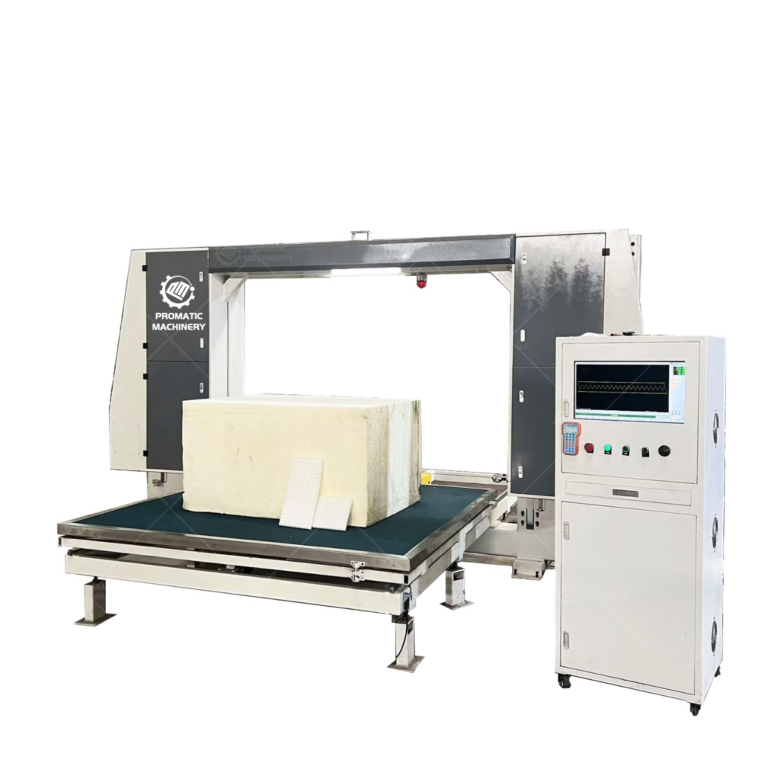

PM-CNC1 CNC Horizontal Circular Cutting Machine
- Consistent Cutting Quality: The use of micro-teeth blades prevents re-grinding, ensuring consistent cutting quality.
- Fixed Block System: Equipped with a fixed block system for stable operation.
- Automatic Cutting and Handling: Features automatic vertical contour cutting with a turntable and automatic loading/unloading system, suitable for mass production of polyurethane foam, viscoelastic, or latex materials.
- Flexible Blade Options: Supports both toothed and non-toothed blades for easy switching, accommodating various product processing needs.
Model: PM-CNC1
Brand: Promatic Machinery
Technical Specifications
| Parameter | Specification |
|---|---|
| Machine Weight | 3 T |
| Total Machine Power | 5.2 KW |
| Machine Dimensions | 6000*4500*3000 mm |
| Maximum Cutting Size | 3000*2000*1100 mm |
| Tool Size | 12485*3.5*0.6 mm |
| Machining Line Speed | 0-40 m/min |
| Machining Accuracy | ±1 mm |
| Minimum Cutting Radius | 5 mm |
| Power Supply | 220V/380V/415V, 50HZ/60HZ |
| CNC Type | Industrial Controller |
| Braided Bearing | X, Y, W1, W2 |
| Manual Turntable/Conveyor Belt | Optional |
| Operating System | Windows XP or above |
| Twist Knife to Zero | Installed |
| Self-Diagnostic State | Installed |
| Knife Break Alarm | Installed |
PM-CNC1 CNC Horizontal Circular Cutting Machine
- Consistent Cutting Quality: The use of micro-teeth blades prevents re-grinding, ensuring consistent cutting quality.
- Fixed Block System: Equipped with a fixed block system for stable operation.
- Automatic Cutting and Handling: Features automatic vertical contour cutting with a turntable and automatic loading/unloading system, suitable for mass production of polyurethane foam, viscoelastic, or latex materials.
- Flexible Blade Options: Supports both toothed and non-toothed blades for easy switching, accommodating various product processing needs.
Model: PM-CNC1
Brand: Promatic Machinery
Detail Pictures & Effect Pictures
