PM-SG-130 Single Wire Pocket Spring Machine
- Wide Compatibility: Suitable for both straight and barrel-shaped springs, meeting the needs of various spring types.
- Easy Adjustment: Can accommodate spring heat treatment devices of different heights, with simple and convenient adjustments.
- Material Savings: Equipped with a non-woven fabric connection device, effectively saving materials and reducing labor.
- Fault Detection: Multiple fault detection devices, ensuring early identification of issues and minimizing waste.
- Fully Automated: Features a single-line, fully CNC spring winding head, eliminating manual adjustments and enhancing productivity.
Model: PM-SG-130
Brand: Promatic Machinery
Technical Specifications
| Parameter | Specification |
|---|---|
| Efficiency | 130 pcs/min |
| Non-Woven Supply | 60-100 g/m² |
| Pocket Spring Height | 80-250 mm (can be customized) |
| Wire Diameter | 1.6-2.4 mm |
| Spring Core Diameter | Ф55-72 mm (can be customized) |
| Non-Woven Width | 340-700 mm |
| Power Supply | 23 kW |
| Total Power | 38 kW |
| Air Requirement | 0.02 m³/min, 0.8 MPa |
| Gross Weight | 3500 kg |
| Size (Main Machine) | 3700*2000*2100 mm |
PM-SG-130 Single Wire Pocket Spring Machine
- Wide Compatibility: Suitable for both straight and barrel-shaped springs, meeting the needs of various spring types.
- Easy Adjustment: Can accommodate spring heat treatment devices of different heights, with simple and convenient adjustments.
- Material Savings: Equipped with a non-woven fabric connection device, effectively saving materials and reducing labor.
- Fault Detection: Multiple fault detection devices, ensuring early identification of issues and minimizing waste.
- Fully Automated: Features a single-line, fully CNC spring winding head, eliminating manual adjustments and enhancing productivity.
Model: PM-SG-130
Brand: Promatic Machinery

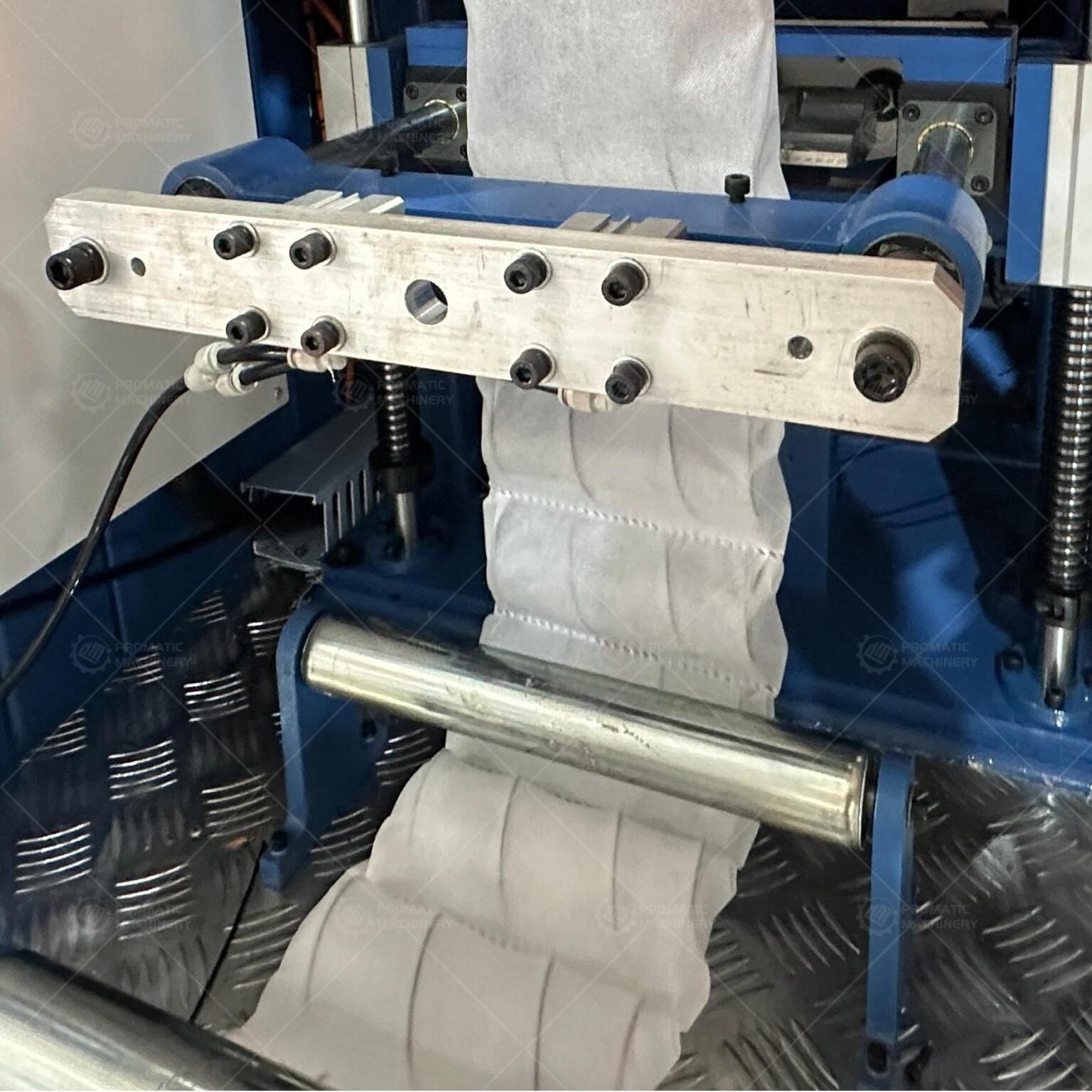

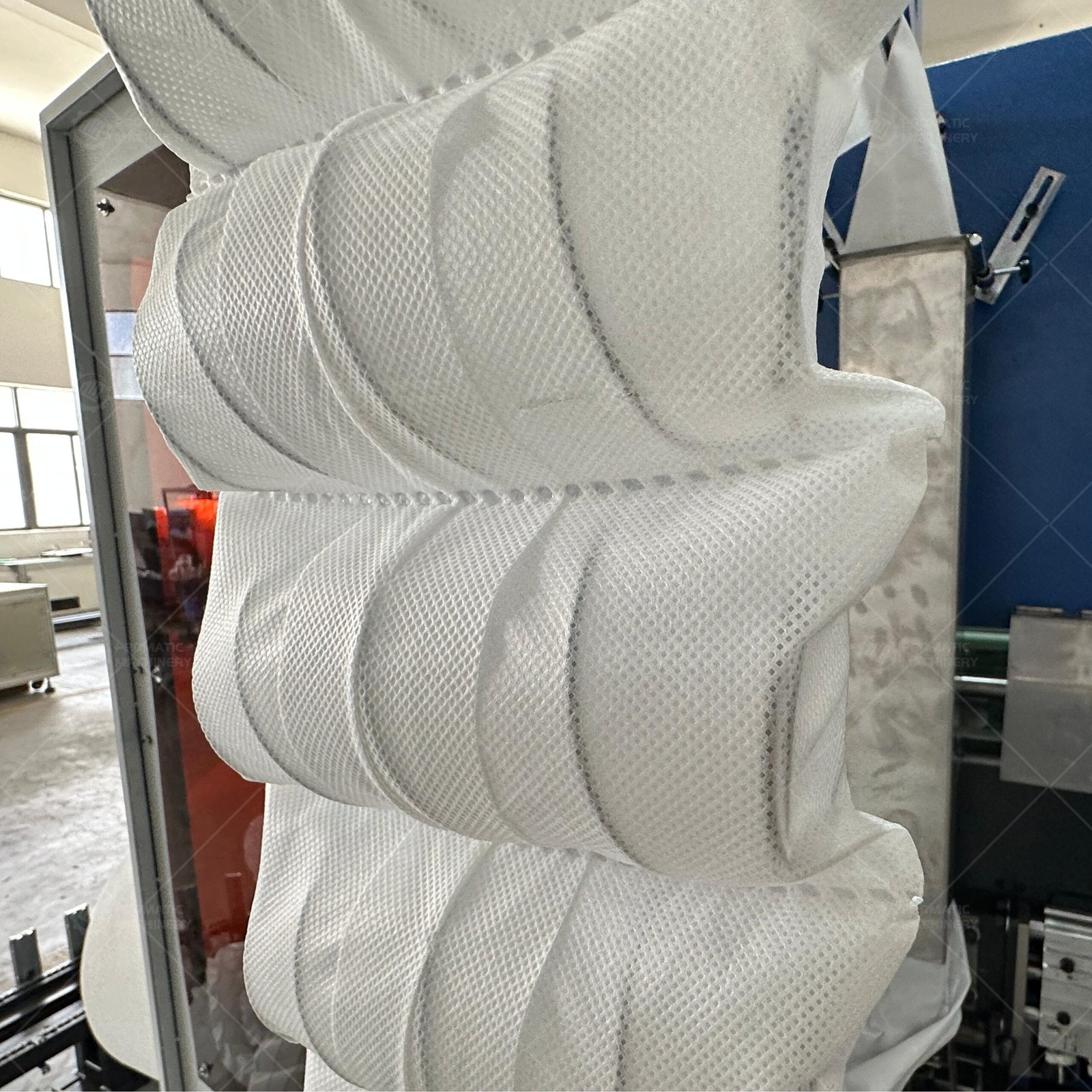

Detail Pictures & Effect Pictures
